|Automatic Type:||Full Automatic||Packing Material:||PE,OPP Pre-made Bag|
|Voltage:||380V,50Hz||Machine Control:||MITSUBISHI PLC|
|Parameters Setting:||MITSUBISHI||Servo Control:||INVT|

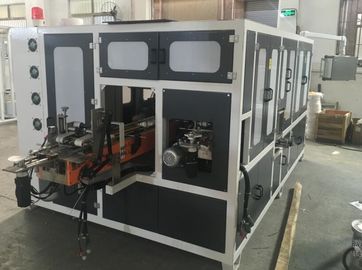

JHTRH-35 Automatic Toilet Rolls Bundle Packing Machine
Machine packing range:L(90-660mm)*W(180-220mm)*H(90-120mm)
Customer Packing size: 1*2;2*2;2*3;2*4;2*5;2*6 rolls
Packing speed: 12-20bags/min
Parameters setting: MITSUBISHI touch screen
Control system:MITSUBISHI PLC
Servo motor:4sets servo motor(INVT)
Packing type:automatic bagging and sealing
Conveyor: 6 meters straight conveyor
Tissue tidy: automatic tidying system
Air pressure:0.6Mpa(user supplied)
Packing material: OPP,CPP,PE hot sealing pre-made bag
1. adopt PLC and servo motors to drive the products feeding,overturn,counting,bag feeding,bag opening,bagging,sealing automatically.
2. bagging and sealing:adopt the mould negative pressure type bagging and sealing to keep the products shape nicely.
3. HIM:adopt MITSUBISHI touch screen to set the parameter to help to operate the machine easily.
4. Fault tracked and warmed:the fault will be showed on the touch screen and tracked the reason to make easy to solve the fault.
5. monitoring system:bags controlled,product checking to keep the machine won’t pack without products;and the checking system help to output the defective goods.In case that the bag can not open,machine will automatic stop.In case the bag is fault and can not open,the bag will output automatically.
6. packing speed: controlled by the frequency converter,easy adjustable.
7, adopt the single feeding channel,connect with the single packing machine easily.
