Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: DH-2000/3000
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 2sets
Delivery Time: 30 days
Supply Ability: 5SETS PER MONTH
Price: |
Economical |
Voltage: |
380V,50Hz |
Servo Motor: |
DELTA |
Control System: |
PLC |
Main Motor Power: |
11Kw |
Parameter Setting: |
Touch Screen |
Price: |
Economical |
Voltage: |
380V,50Hz |
Servo Motor: |
DELTA |
Control System: |
PLC |
Main Motor Power: |
11Kw |
Parameter Setting: |
Touch Screen |

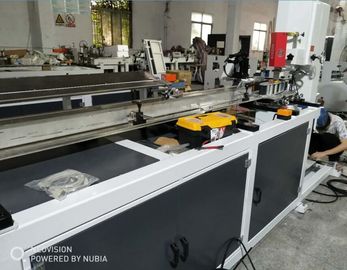

HD-2000/3000automatic band saw cutter
Features:
1. economical
2. speed:80cuts/min
3. easy to connect rewinding machine
4. easy to setting parameter on touch screen
| MODLE | HD-2000/3000 |
| Max.roll length | 2000/3000mm(should be ordered) |
| Cutting length | 50-220mm(setting on touch screen) |
| Cutting roll diameter | 55-125mm(with core) |
| Cutting speed | 50-80cuts/min |
| Speed control | frequency converter(DELTA) |
| Parameter setting | touch screen(DELTA) |
| PLC control | DELTA |
| Servo motor control | DELTA |
| Power | 4kw,380V,50Hz |
| Air pressure | 0.6Mpa(user supply) |
| Machine weight | About 1000kg |
| Machine size | 4450*2200*1870mm |
