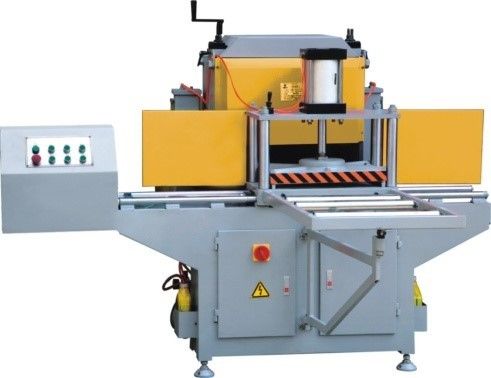

2840r/Min Five Blades Head Face Aluminium Milling Machine

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: A-313F

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: Negotiable

Packaging Details: wooden pallet,20 feet container can load 1set

Delivery Time: 90 days

Supply Ability: 5SETS PER MONTH

Get Best Price
Highlight:

2840r/Min Aluminium Milling Machine

,

Five Blades Aluminium Milling Machine

Warranty:
12months
Milling Blade Running Speed:
2840r/min
Motor Power:
3×2.2kw、1×1.1kw
Warranty:
12months
Milling Blade Running Speed:
2840r/min
Motor Power:
3×2.2kw、1×1.1kw
2840r/Min Five Blades Head Face Aluminium Milling Machine

A-313F Five Blades Head Face Milling Machine



Machine Features:

1 5pcs cemented carbide milling blade, mill the rabbet in once.

2.5pcs milling blades are installed on 4 motors, they can be adjusted up, down, front and back basic on the aluminum raw material.
3.4 motors is separating controlled, the operator can choose different motors working which base on the rabbet.

Machine parameters
1.working bench size(L×W) 500×320mmm
2.motor power 3×2.2kw,1×1.1kw
3.milling blade running speed 2840r/min
4.quantity for milling 10~12PCS
5.air pressure of material pressing cylinder 0.6~0.65Mpa
6.max. working length of feeding cylinder 1000mm
7.milling blade dimension(OD×IN×T) Φ250×Φ50×6.5mm
Φ305×Φ25.4×3.2mm
8.machine dimension(L×W×H) 2370×1000×1640mm
9.machine weight 1300kg
10. air consumption 450L/min
