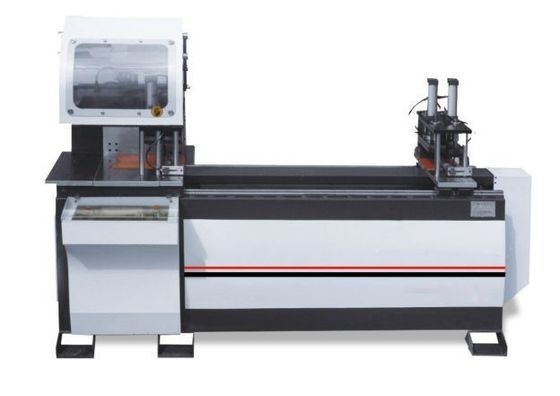

Single Head Aluminium Window Cutting Machine CNC Automatic Feeding

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: A-328AD

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: Negotiable

Packaging Details: wooden pallet,20 feet container can load 1set

Delivery Time: 90 days

Supply Ability: 5SETS PER MONTH

Get Best Price
Highlight:

30m/min Aluminium Window Cutting Machine

,

1500mm Aluminium Window Cutting Machine

Warranty:
12months
Milling Blade Running Speed:
2840r/min
Max.material Feeding Length:
1500mm
Cutting Size:
250mmX110mm
Feeding Speed:
30m/min
Warranty:
12months
Milling Blade Running Speed:
2840r/min
Max.material Feeding Length:
1500mm
Cutting Size:
250mmX110mm
Feeding Speed:
30m/min
Single Head Aluminium Window Cutting Machine CNC Automatic Feeding

A-328AD Heavy Duty CNC Automatic Feeding Single Head Cutting Machine



Machine Features:

Adopts DELTA control system and touch screen controls the machine running automatically, operating easily. This machine can be used for kinds of industrial aluminum cutting. Adopts high quality accuracy motor driving the saw blade to reduce the shaking and loss, improve the cutting accuracy. Adopts special cutting fluid atomizer to extend the blade life and increase the quality of cutting surface.

Machine parameters
1. Max. material feeding length 1500mm
2. cutting size 250mmX110mm
3. Positional accuracy ±0.02 mm
4. Feeding screw rod size Ø32 mmX10 mmX1850 mm
5. Feeding servo motor 1.0KW
6. Feeding speed 30m/min
7. Saw blade driving motor 4kw
8. Motor running speed 2840r/ min
9. Saw blade size Ø500mmX30X4.2X120T
10. Cutting angle 90°
11. Machine power 3 phase 380V/50HZ
12. Air pressure 0.6-0.8Mpa
