50HZ Tissue Paper Production Line , Steel To Steel Embossing V Fold Facial Hand Towel Tissue Interfolder Machine
1SET
MOQ
Negotiable
Price
50HZ Tissue Paper Production Line , Steel To Steel Embossing V Fold Facial Hand Towel Tissue Interfolder Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: DM180-190-200
High Light:

tissue paper manufacturing machine

,

tissue making equipment

Payment & Shipping Terms
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 40 days
Supply Ability: 5SETS PER MONTH
Specifications
Embossing: One Set 4 Rolls Steel To Rubber Or Steel To Steel
Folding Type: V Fold
Driving: Separating Motor Driving
Voltage: 380V 50HZ
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Power(w): 15KW
Product Description

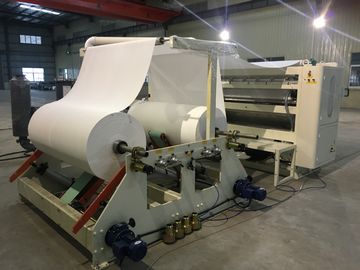

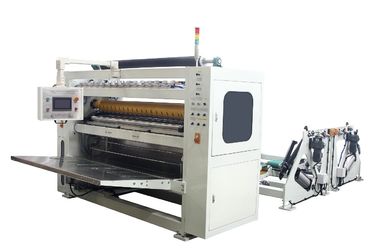

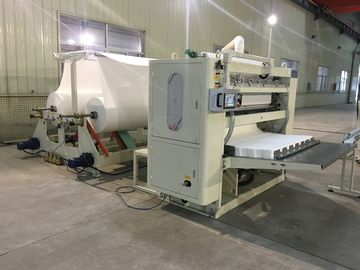

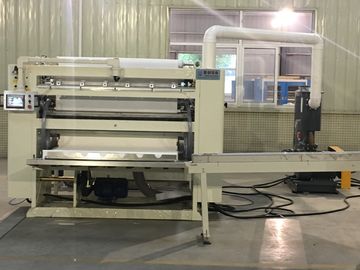

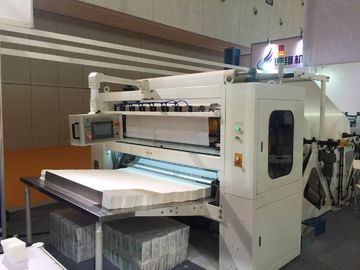

Steel to steel embossing V Fold Facial Tissue Hand Towel Tissue interfolder machine



DM 180/190/200 Facial Tissue Folding Machine



MODEL 5T 6T 7T 9T 10T 14T
Max. Width of jumbo roll 1050mm 1260mm 1500mm 1900mm 2000mm 2850mm
Slitting knife 5sets in back and front 6sets in back and front 7sets in back and front 9sets in back and front 10sets in back and front 14sets in back and front
Vacuum pump 15kw 18.5kw 18.5kw 22kw 22kw 50kw
Main driving motor powe 5.5kw 5.5kw 7.5kw 7.5kw 11kw 15kw
Machine size 6×2.3×1.9m 6×2.5×1.9m 6×2.8×1.9m 6×3.3×1.9m 6×3.5×1.9m 6×4×1.9m
Machine weight 5500kg 6500kg 7500kg 8300kg 8500kg 9500kg
Machine speed 500-1000 sheet/min/lane
Max.diameter of jumbo roll Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll Ф76.2mm(other sizes can be ordered)
Bankstand 2-6 jumbo rolls (should be ordered)
Embossing unit Steel to rubber,steel to paper,steel to steel(should be ordered)
Edge embossing unit Air bag type,bearing pattern(should be ordered)
Air pressure 0.8Mpa(user supplied)
