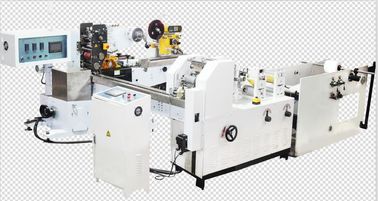

Double Lanes Pocket Tissue Paper Making Machine , Paper Manufacturing Equipment Full Automatic

Double Lanes Pocket Tissue Paper Making Machine , Paper Manufacturing Equipment Full Automatic
Double Lanes Pocket Tissue Paper Making Machine , Paper Manufacturing Equipment Full Automatic

Large Image :  Double Lanes Pocket Tissue Paper Making Machine , Paper Manufacturing Equipment Full Automatic Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: CM-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 60days
Supply Ability: 2sets per month
Detailed Product Description
Lane: 2 Lanes Color: Yellow
Speed: 900-1000PCS/min Separating: Automatic
Parameters Setting: Touch Screen Automatic Type: Full Automatic
Voltage: 380V,50Hz Color Printing: 0-2 Colors
Highlight:

tissue paper manufacturing machine

,

tissue making equipment



CM-1000 Automatic pocket tissue folding machine





Features:

  • Automatic counting
  • Automatic separating
  • Touch screen parameters setting
  • Connect the packing machine easily
  • High speed:900-1000pcs/min
Model CM-1000
Max.Jumbo roll width 400-420mm
Max.jumbo roll diameter 1200mm
Finished product size (50-54)*(72/102)mm should be chosen
Embossing unit Steel to rubber/steel to paper/steel to steel(option)
Vacuum pump 7.5Kw,380V,50Hz
Counting Automatic counting,6/8/10/12pcs,setting on touch screen
Parameter setting Touch screen
Main power 3Kw,380V,50Hz
Working speed 900-1000pcs/min
Air pressure 0.8Mpa
Machine size 2680*1050*1550mm





XB202 Automatic Pocket Tissue Packing Machine

Features:

  • high speed:100bags/min
  • Good quality:cam can running at least 5 years
  • Stable running with SIEMENS PLC control
  • Speed adjust:MITSUBISHI frequency converter
  •

5. Tearing knife type:mechanical type

Model XB202
Packing size (70-110)*(50-55)*(20-28)mm(L*W*H)
Working speed 60-105bags/min
Machine power 4.68Kw,380V,50Hz
Air pressure 0.8Mpa
Packing film material CPP,PE,OPP
PLC control SIEMENS
Frequency converter MITSUBISHI
Parameter setting Touch screen(Weinview)
Machine size 2840*2650*1720mm(L*W*H)
Machine weight About 1500Kg



TB380A Automatic Bundle Wrapping Machine

Features:

1. high speed:12bags/min

2. Good quality:cam can running at least 5 years

3. Stable running with SIEMENS PLC control

4. Tearing knife type:pneumatic type

5. 2ply,3ply can be chosen

Model TB380A
Packing size (150-300)*(70-150)*(42-84)mm(L*W*H)
Working speed 10-15bags/min
Power 3.5Kw,380V,50Hz
Air pressure 0.8Mpa
Parameter setting Touch screen(Weinview)
PLC control SIEMENS
Packing film material CPP,PE,OPP
Machine size 2500*3200*1550mm(L*W*H)
Machine weight About 1200Kg
