Single Line Pocket Tissue Paper Production Line With Touch Screen 60 Bags / Min
1SET
MOQ
Negotiable
Price
Single Line Pocket Tissue Paper Production Line  With Touch Screen 60 Bags / Min
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: DEMI
Model Number: DM-60
High Light:

tissue paper manufacturing machine

,

tissue making equipment

Payment & Shipping Terms
Packaging Details: Wooden Case 20 feet container can load 2 sets
Delivery Time: 30
Supply Ability: 3SETS PER MONTH
Specifications
Running: Fully Automatically
Voltage: 380V,50Hz
Folding Type: Vortex Vacuum Pump
Single Packing: Automatic
Bundle Packing: Automatic
Power(w): 5.5KW
Warranty: 1 Year
Speed: 800 Pieces/min/line
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Description

Single Line Pocket Tissue Production Line 60bags/min

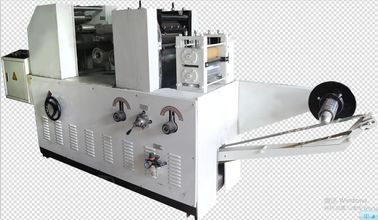

DM- 60  Automatic pocket tissue folding machine WITH Separator

Model DM- 60
Max.Jumbo roll width 200-201mm
Max.jumbo roll diameter 1500mm
Finished product size (50-54)*(72/102)mm should be chosen
Embossing unit Steel to rubber/steel to paper/steel to steel(option)
Vacuum pump 7.5Kw,380V,50Hz
Counting Automatic counting,6/8/10/12pcs,setting on touch screen
Parameter setting Touch screen
Main power 5.5Kw,380V,50Hz
Working speed 600-650pcs/min
Air pressure 0.8Mpa
Machine size 2380*750*1570mm

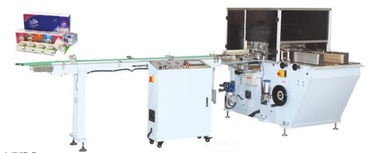

XB202 Automatic Pocket Tissue Packing Machine

Model XB202
Packing size (70-110)*(50-55)*(20-28)mm(L*W*H)
Working speed 60-105bags/min
Machine power 4.68Kw,380V,50Hz
Air pressure 0.8Mpa
Packing film material CPP,PE,OPP
PLC control SIEMENS
Frequency converter MITSUBISHI
Parameter setting Touch screen(Weinview)
Machine size 2840*2650*1720mm(L*W*H)
Machine weight About 1500Kg



TB380A Automatic Bundle Wrapping Machine

Model TB380A
Packing size (150-300)*(70-150)*(42-84)mm(L*W*H)
Working speed 10-15bags/min
Power 3.5Kw,380V,50Hz
Air pressure 0.8Mpa
Parameter setting Touch screen(Weinview)
PLC control SIEMENS
Packing film material CPP,PE,OPP
Machine size 2500*3200*1550mm(L*W*H)
Machine weight About 1200Kg
