Delta Servo Motor Log Saw Cutting Machine , Toilet Roll Cutting Machine High Speed
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: YD-ZN150S
High Light:

log saw cutter


paper roll cutting machine

Payment & Shipping Terms
Packaging Details: wooden pallet,20 feet container can load 2 sets
Delivery Time: 40 days
Supply Ability: 3SETS PER MONTH
High Speed: 120cuts/min
Color: White And Blue
Cutting: Toilet Roll Cutting Machine
Name: Automatic Saw Cutting Machine
Product: Log Saw Cutter
Title: Tissue Log Saw
Product Description

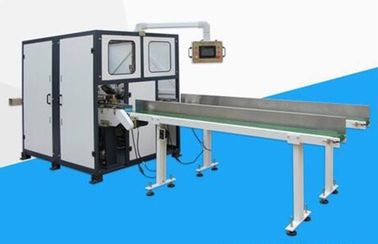

YD-ZN150S High Speed Facial Tissue Log Saw Cutting Machine


1. Delta servo motor feeding driving,control precisely.

2. Delta PLC control programme makes control steadily.

3. 610mm diameter good quality log saw blade extend the using time

4. Air TAC cylinder and valves from TAIWAN make the pneumatic system work smoothly.

Cutting speed 30-120cuts/min
Cutting length 85-210mm
Cutting height 40-120mm
Cutting width 85-120mm
Power 8.6kw,380v,50Hz
Main driving motor power 4kw,380v,50Hz
Cutting circular blade driving motor 2.2kw,380v,50Hz
Tissue log feeding motor(servo motor) 3kw,380v,50Hz
Air pressure 0.6Mpa(user supply)
Machine size 2.2×1.22×2.05m
