Steel Embossing Automatic Towel Folder / Hand Towel Rewinding Machine With Root Vacuum Pump

China Steel Embossing Automatic Towel Folder / Hand Towel Rewinding Machine With Root Vacuum Pump supplier

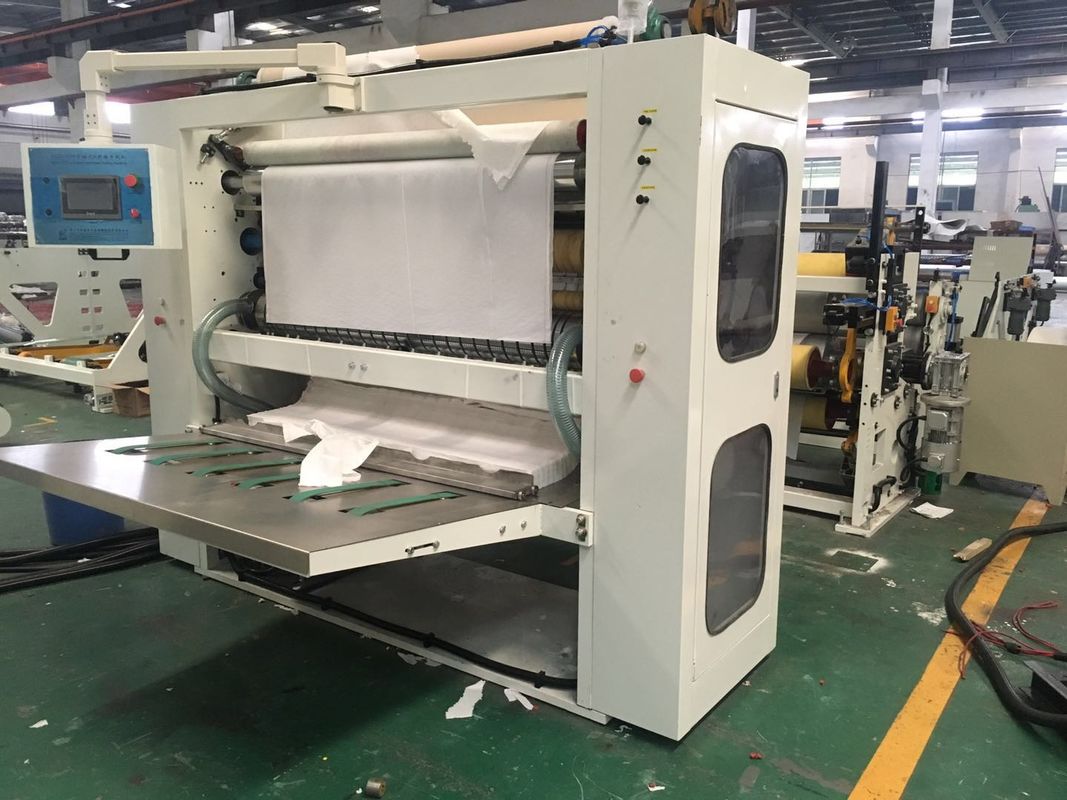

Large Image :  Steel Embossing Automatic Towel Folder / Hand Towel Rewinding Machine With Root Vacuum Pump

Product Details:

Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: ZH-NF210/215/225

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 60 days
Supply Ability: 3 sets per month
Contact Now
Detailed Product Description
Embossing: Steel To Steel Speed: 800-1000pcs/min/lane
Voltage: 380V,50Hz Vacuum Pump: Root Vacuum Pump
Backstand: 1-2sets Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power(w): 15KW

High Quality and Service Automatic N Folded Hand Towel Folder Rewinding Machine



ZH-NF210/215/225 N Folded Hand Towel Folding Machine

Features:

  • High speed:800-1000 sheet/min
  • Multifunction:hand towel and kitchen towel can be made
  • Control system:SIEMENS PLC

Parameters:

MODEL 3T 4T 5T 6T
Max. Width of jumbo roll 630mm 840mm 1050mm 1260mm
Slitting knife 3sets in back and front 4sets in back and front 5sets in back and front 6sets in back and front
Vacuum pump 11Kw 11Kw 15kw 18.5kw
Main driving motor powe 4kw 4kw 5.5kw 5.5kw
Machine size 6×1.8×1.9m 6×2×1.9m 6×2.3×1.9m 6×2.5×1.9m
Machine weight 3500kg 4500kg 5500kg 6500kg
Machine speed 500-1000 sheet/min/lane
Max.diameter of jumbo roll Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll Ф76.2mm(other sizes can be ordered)
Bankstand 2-6 jumbo rolls (should be ordered)
Embossing unit Steel to rubber,steel to paper,steel to steel(should be ordered)
Lamination unit Should be option
Edge embossing unit Air bag type,bearing pattern(should be ordered)
Air pressure 0.8Mpa(user supplied)
