Home > products > Slitter Rewinder Machine > Big Jumbo Roll Paper Slitting Machine 200m / Min Separation Motor Driving

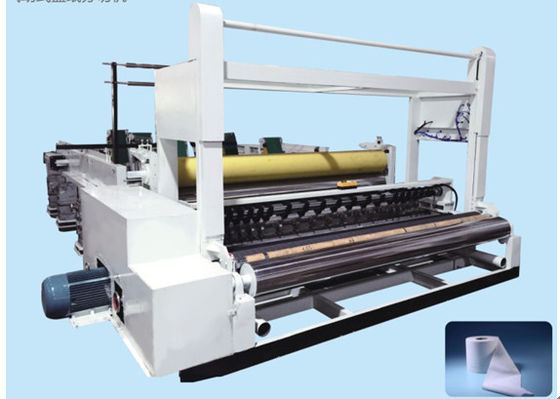

Big Jumbo Roll Paper Slitting Machine 200m / Min Separation Motor Driving

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: DM-FC Slitting Rewinder

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiable

Packaging Details: wooden pallet,1 20feet container can load 1set

Delivery Time: 60 days

Supply Ability: 2 sets per month

Get Best Price
Highlight:

paper slitter rewinder

,

paper slitting machine

Backstand:
1-3set
Slitting Width:
Adjsutable
Speed:
200m/min
Core Dia.:
76mm
Finished Products Dia.:
0-110mm
Main Motor:
4KW
Place Of Origin:
CHINA(mainland)
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Backstand:
1-3set
Slitting Width:
Adjsutable
Speed:
200m/min
Core Dia.:
76mm
Finished Products Dia.:
0-110mm
Main Motor:
4KW
Place Of Origin:
CHINA(mainland)
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Big Jumbo Roll Paper Slitting Machine 200m / Min Separation Motor Driving

Big Jumbo Roll Paper Slitter Machine 200m/ Min Separation motor driving



DM-FC Slitting Rewinding Machine

Model 1575 2000 2200 2600 2900
Max.width of jumbo roll(mm) 1750 1950 2150 2550 2850
Diameter of jumbo roll(mm) ≤1500mm
Finished products diameter(mm) 1100
Finished product width(mm) adjustable
Backstand 1-3sets(should be ordered)
Air shaft 1-4pcs(should be ordered)
Calendering unit Steel to rubber,steel to steel(should be ordered)
Transmission system Chain and chain wheel or separating motor driving(should be ordered)
Power 5.5-11Kw,380V,50Hz(base on the model)
Air pressure 0.8Mpa(user supplied)
Machine size(mm) 6200*2600*1800-6200*4000*1800(L*W*H,base on model)
