Product Details
Place of Origin: China
Brand Name: Foshan Orginal Tissue Machine
Model Number: DM-FJ
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD10000-100000/SET
Packaging Details: wooden pallets
Delivery Time: 60 workdays

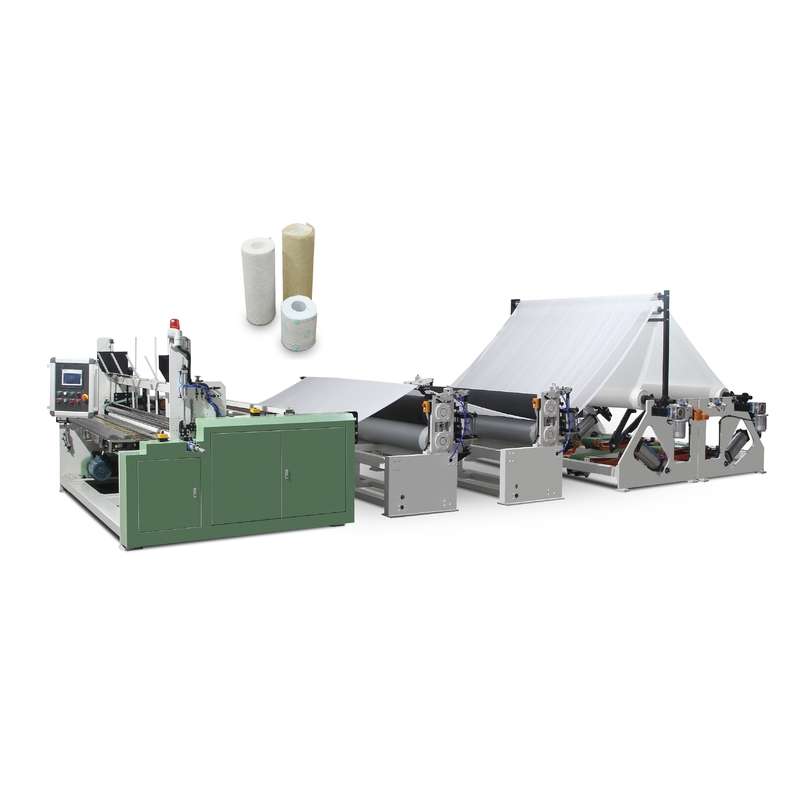

Toilet Paper Making Machine
| Description | Item | Configurations |
| Jumbo roll | 1 | Diameter ≤φ1500mm |
| 2 | Jumbo roll width 1750-3000mm to be ordered | |
| Unwinder | 1 | 1-4 sets unwinders to be ordered |
| 2 | Driven by individual motor | |
| Side-Embossing | 1 | Air-bag type |
| Full embossing | 1 | To be ordered |
| Lamination | 1 | To be ordered |
| Perforation unit | 1 | 4 spiral anvil upper blade and one lower blade |
| Winding part | 1 | Output log diameter: 80-300mm |
| 2 | Paper core diameter:35-76mm | |
| Driving system | 1 | Each station is driven by individual motor and individual frequency converters. |
| Control system | 1 | INVT frequency converters |
| 2 | INVT PLC | |
| 3 | Siemens Touch screen | |
| Power supply | 1 | 380V 50Hz |
| Air supply | 1 | 0.6Mpa (user supplied) |
