Small Band SawJumbo Roll Cutting Machine , Toilet Roll Cutting Machine Automatical

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: JH300C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiable

Packaging Details: wooden pallet,20 feet container can load 1set

Delivery Time: 40 working days

Supply Ability: 3sets per month

Get Best Price
Highlight:

band saw cutting machine

,

jumbo roll cutting machine

Control System:
MITSUBISHI PLC
Length Control:
Servo Motor
Cutting Setting:
Touch Screen
Voltage:
380V,50/60Hz
Grinding:
Automatically
Recycle:
Blowing Type
Control System:
MITSUBISHI PLC
Length Control:
Servo Motor
Cutting Setting:
Touch Screen
Voltage:
380V,50/60Hz
Grinding:
Automatically
Recycle:
Blowing Type
Small Band SawJumbo Roll Cutting Machine , Toilet Roll Cutting Machine Automatical

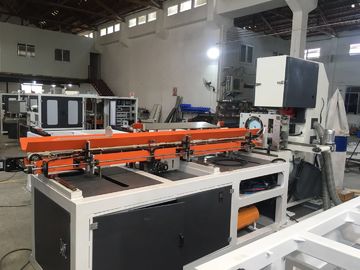

JH300C Fully automatic maxi roll band saw cutter





FEATURES:



◆ Adopt touch screen setting,one key setting to change the cutting size,PLC control gramme easy to check the faults

     ◆ Fully automatic cutting and loading,keep the worker safe.

     ◆ This machine only can cutting maxi roll product.

    ◆ Parameters setting on the touch screen,and cutting products base on setting automatically

    ◆ Advance design,the main parts use the import material,others are Chinese standard ones.

    ◆ cutting size should be ordered.



Parameters:

Cutting speed:30-50cuts/min

Power voltage:380V 50Hz

Air pressure:0.6MPa(user supplied)

Total power:15KW

Standard cutting range:length:90-250mm, diameter:150-250mm/option diameter:150-300mm

Cutting length:90-500mm

Machine weight:3000KG

Band saw blade size:5180*90*1.2mm

Grinding wheel:SONGLIN



Main parts list

NAME BRAND NAME BRAND
Air switch ZHENGTAI Ball bearings HRB or SKF
Contactor ZHENGTAI Pneumatic parts AIRTAC
Relay OMRON Timming belt GUANGZHOU
Brake resistor TAIWAN Timming wheel GUANGZHOU
Touch screen INVT Linear bearings HIWIN
Servo amplifier INVT Band saw blade KWANYE
Servo motor INVT Grinding wheel SONGLIN
Converter INVT Proximity switch YANGMING
Fuse FURONG Optoelectronic switch YANGMING
transformer ZHENGDA Air valves AIRTAC
