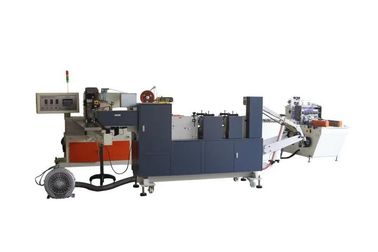

Touch Screen Pocket Tissue Paper Production Line With Sperating Automatic
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Speed Of Pocket Tissue Machine: | 700pieces/min | Parameter Setting: | Touch Screen |
|---|---|---|---|
| Speed Control: | Frequency Converter | Inner Dia.of Core: | 76.2mm |
| Vacuum Pump: | 5.5KW | Finished Products Unfolded Size: | 210*210mm |
| Folded Size: | 102*52mm And 72*52mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | Raw Material: | Virgin Pulp |
| Highlight: | tissue paper manufacturing machine,tissue making equipment |
||
Economical Hankerchief /Pocket Tissue Production line with sperating automatic
SP-1L Automatic pocket tissue folding machine
Features:
1. High Speed:700pcs/min
2. Fully automatic:counting and separating automatically
3. Easy connect the single bag packing machine
4. Standard size and mini size both can make
| Model | SP-1L |
| Max.Jumbo roll width | 200-201mm |
| Max.jumbo roll diameter | 1500mm |
| Finished product size | (50-54)*(72/102)mm should be chosen |
| Embossing unit | Steel to rubber/steel to paper/steel to steel(option) |
| Vacuum pump | 7.5Kw,380V,50Hz |
| Counting | Automatic counting,6/8/10/12pcs,setting on touch screen |
| Parameter setting | Touch screen |
| Main power | 1.5Kw,380V,50Hz |
| Working speed | 600-650pcs/min |
| Air pressure | 0.8Mpa |
| Machine size | 2380*750*1570mm |
XB202 Automatic Pocket Tissue Packing Machine
Features:
1. High speed:100bags/min
2. Standard size and mini size can pack
3. Easy to conect the single and bundle machine
4. Fully automatic:tearing and labeling in once
5. MITSUBISHI frequency converter
6. SIEMENS PLC
| Model | XB202 |
| Packing size | (70-110)*(50-55)*(20-28)mm(L*W*H) |
| Working speed | 60-105bags/min |
| Machine power | 4.68Kw,380V,50Hz |
| Air pressure | 0.8Mpa |
| Packing film material | CPP,PE,OPP |
| PLC control | SIEMENS |
| Frequency converter | MITSUBISHI |
| Parameter setting | Touch screen(Weinview) |
| Machine size | 2840*2650*1720mm(L*W*H) |
| Machine weight | About 1500Kg |
TB380A Automatic Bundle Wrapping Machine
Features:
1. Easy to connect single packing machine
2. High speed:15-17bags/min
3. Full automatic wrapping
4. 2*3/4/5/6/8 packing size(3*3/5/6 packing size should be ordered)
5. Standards size and mini size can pack
6. SIEMENS PLC
| Model | TB380A |
| Packing size | (150-300)*(70-150)*(42-84)mm(L*W*H) |
| Working speed | 10-15bags/min |
| Power | 3.5Kw,380V,50Hz |
| Air pressure | 0.8Mpa |
| Parameter setting | Touch screen(Weinview) |
| PLC control | SIEMENS |
| Packing film material | CPP,PE,OPP |
| Machine size | 2500*3200*1550mm(L*W*H) |
| Machine weight | About 1200Kg |
