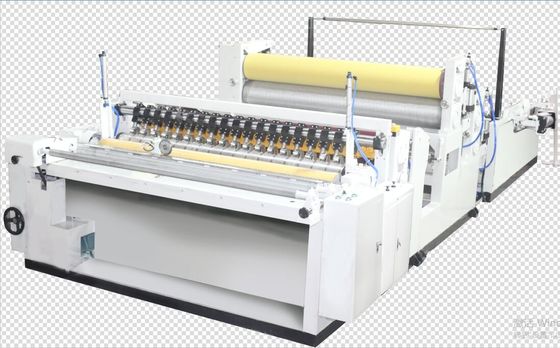

Maxi / Jumbo Roll Slitter Rewinder Machine High Speed Separating Motor Driving

Maxi / Jumbo Roll Slitter Rewinder Machine High Speed Separating Motor Driving
Maxi / Jumbo Roll Slitter Rewinder Machine High Speed Separating Motor Driving

Large Image :  Maxi / Jumbo Roll Slitter Rewinder Machine High Speed Separating Motor Driving Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: MZQ-III-D
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden case,20feet container can load 1set
Delivery Time: 60days
Supply Ability: 3SETS PER MONTH
Detailed Product Description
High Speed: 250m/min Separating Driving: Separating Motor Driving
Backstand Adding: Easy To Add Backstand Color: White And Blue
Good Quality: SIEMENS PLC Voltage: 380V,50Hz
Highlight:

rewinding and slitting machine

,

paper slitting machine

MZQ-III-D High speed toilet paper rewinding machine



Features:

1. High speed:250m/min

2. Easy to adjust the slitting size(pneumatic type)

3. One machine can make 2 width products

4. Finished product diamter easy to change(cylinder control)

5. tight or loose easy to adjust(pneuamtic control)



MODLE 1575 1760 2200 2500 2800 2900 3000
Max.Jumbo roll width(mm) 1750 2000 2150 2400 2750 2850 2950
Finished product diameter(mm) Ф120-250
Finished product core inner diameter(mm) Ф32-50
Jumbo roll diameter(mm) ≤Ф1200(other size should be ordered)
Jumbo roll core inner diameter(mm) Ф76.2(other size should be ordered)
Perforating size(mm) 110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed 250m/min
Parameter setting SIEMENS touch screen
PLC control SIEMENS PLC
backstand 1-4sets(should be ordered)
Air pressure 0.8Mpa(user supply)
Power 13.5-35Kw,380V,50Hz(base on the model)
Option
Embossing unit Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
backstand 1-4 sets(should be ordered)
Transmission Separating motor driving/timming belt transmission/chain and chain wheel transmission
Core or coreless unit Should be ordered
Edge embossing unit Air bag type(should be ordered)
Calendering unit Steel to steel/steel to rubber(should be ordered)
