Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Certification: CE
Model Number: FTM6T/200
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden pallet, 20 feet container can load 1set
Delivery Time: 40-60 working days
Payment Terms: T/T
Supply Ability: 4sets per month
Name: |

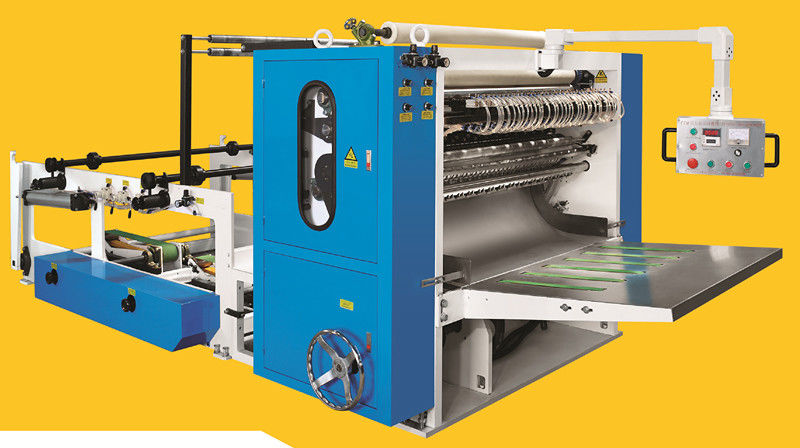

Tissue Paper Making Machine |
Type: |
Facial Tissue Making Machine |
Title: |
Tissue Manufacturing Machine |
Product: |
Tissue Roll Making Machine |
Name: |
Tissue Paper Making Machine |
Type: |
Facial Tissue Making Machine |
Title: |
Tissue Manufacturing Machine |
Product: |
Tissue Roll Making Machine |
| MODEL | FTM2T | FTM3T | FTM4T | FTM5T | FTM6T | FTM7T | FTM8T | FTM9T | FTM10T |
| Max. Width of jumbo roll | 520mm | 650mm | 900mm | 1050mm | 1300mm | 1450mm | 1750mm | 1950mm | 2050mm |
| Slitting knife | 2sets in back and front | 3sets in back and front | 4sets in back and front | 5sets in back and front | 6sets in back and front | 7sets in back and front | 8sets in back and front | 9sets in back and front | 10sets in back and front |
| Vacuum pump | 7.5kw | 7.5kw | 11kw | 15kw | 18.5kw | 18.5kw | 22kw | 22kw | 22kw |
| Main driving motor powe | 3kw | 3kw | 4kw | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 7.5kw | 11kw |
| Machine size |
5×1.6 ×2m |
5×1.75 ×2m |
6×2.1 ×1.9m |
6×2.3 ×1.9m |
6×2.5 ×1.9m |
6×2.6 ×1.9m |
6×3 ×1.9m |
6×3.1 ×1.9m |
6×3.2 ×1.9m |
| Machine weight | 3000kg | 3500kg | 4500kg | 5500kg | 6500kg | 7500kg | 8000kg | 8300kg | 8500kg |
| Machine speed | 500-1000 sheet/min/lane | ||||||||
| Max.diameter of jumbo roll | Ф1200mm(other sizes can be ordered) | ||||||||
| Inner diameter of jumbo roll | Ф76.2mm(other sizes can be ordered) | ||||||||
| Air pressure | 0.8Mpa(user supplied) | ||||||||
