Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: ZN-E-III-250-2900
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 60 days
Supply Ability: 3 sets per month
Embossing: |
Steel To Steel |
Voltage: |
380V,50Hz |
Vacuum Pump: |
Root Vacuum Pump |
Backstand: |
1-2sets |
Warranty: |
1 Year |
Glue Lamination: |
With Glue Lamination System |
GSM: |
13-25GSM/PLY |
Power(w): |
15KW |
Embossing: |
Steel To Steel |
Voltage: |
380V,50Hz |
Vacuum Pump: |
Root Vacuum Pump |
Backstand: |
1-2sets |
Warranty: |
1 Year |
Glue Lamination: |
With Glue Lamination System |
GSM: |
13-25GSM/PLY |
Power(w): |
15KW |
Toilet Tissue/Kitchen Towel Two used rewinding machine with high speed economical price

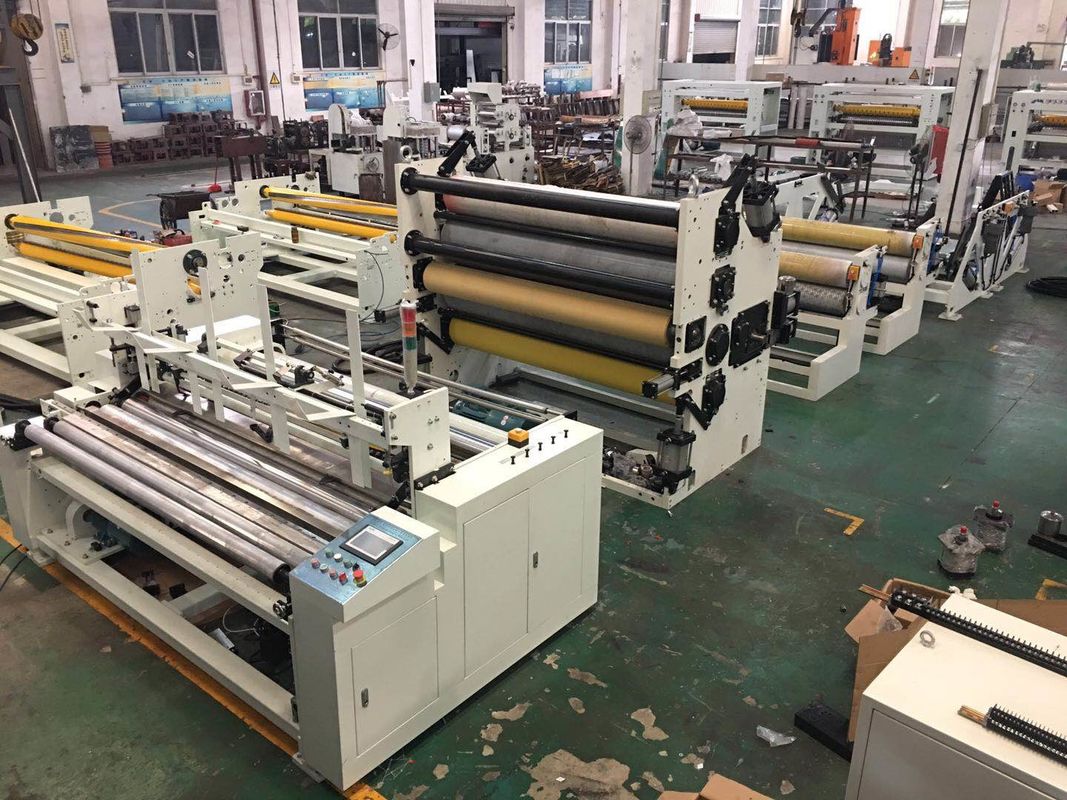

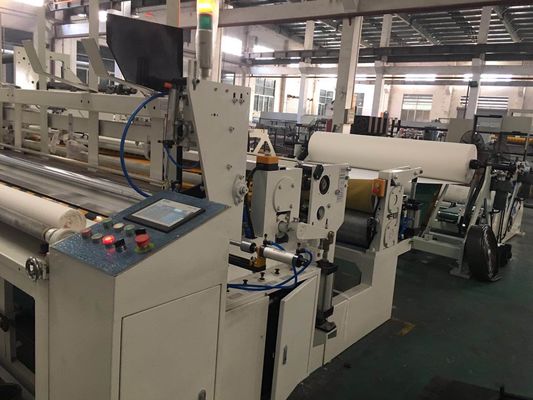

ZN-E-III-250-2900 Toilet /Kitchen Towel Rewinding Machine
Parameters:
| MODLE | 1575 | 1760 | 2200 | 2500 | 2800 | 2900 | 3000 |
| Max.Jumbo roll width(mm) | 1750 | 2000 | 2150 | 2400 | 2750 | 2850 | 2950 |
| Finished product diameter(mm) | Ф60-150 | ||||||
| Finished product core inner diameter(mm) | Ф32-50 | ||||||
| Jumbo roll diameter(mm) | ≤Ф1200(other size should be ordered) | ||||||
| Jumbo roll core inner diameter(mm) | Ф76.2(other size should be ordered) | ||||||
| Perforating size(mm) | 110mm(other size should be ordered,4PCS spiral perforating blade) | ||||||
| Machine speed | 250m/min | ||||||
| Parameter setting | SIEMENS touch screen | ||||||
| PLC control | SIEMENS PLC | ||||||
| backstand | 1-4sets(should be ordered) | ||||||
| Air pressure | 0.8Mpa(user supply) | ||||||
| Power | 13.5-35Kw,380V,50Hz(base on the model) | ||||||
| Option | |||||||
| Embossing unit | Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered) | ||||||
| backstand | 1-4 sets(should be ordered) | ||||||
| Transmission | Separating motor driving/timming belt transmission/chain and chain wheel transmission | ||||||
| Lamination unit | Should be ordered | ||||||
| Edge embossing unit | Air bag type(should be ordered) | ||||||
| Calendering unit | Steel to steel/steel to rubber(should be ordered) | ||||||
