Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: YC-FTM2-10T
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet,1*20feet container can load 1set
Delivery Time: 60 days
Supply Ability: 5sets per month
Material: |
Steel |
Folding Type: |
V Folded |
Power: |
4-11kw |
Transmission: |
Separating Motor And Timming Belt |
Vacuum Pump: |
Vortex Or Roots Vacuum Pump |
Place Of Origin: |
China(Mainland) |
Warranty: |
12 Months |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Material: |
Steel |
Folding Type: |
V Folded |
Power: |
4-11kw |
Transmission: |
Separating Motor And Timming Belt |
Vacuum Pump: |
Vortex Or Roots Vacuum Pump |
Place Of Origin: |
China(Mainland) |
Warranty: |
12 Months |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
4-11KW V Folded Tissue Folding Machine High Speed PLC Control System

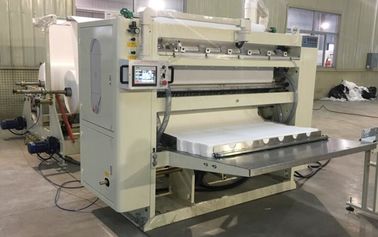

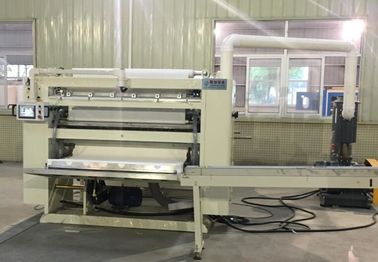

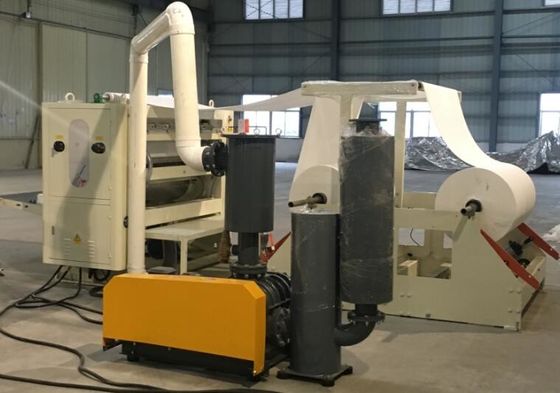

YC-FTM2-10T V Folded Facial Tissue Folding Machine
Features:
Specifications:
| MODEL | FTM2T | FTM3T | FTM4T | FTM5T | FTM6T | FTM7T | FTM8T | FTM9T | FTM10T |
| Max. Width of jumbo roll | 520mm | 650mm | 900mm | 1050mm | 1300mm | 1450mm | 1750mm | 1950mm | 2050mm |
| Slitting knife | 2sets in back and front | 3sets in back and front | 4sets in back and front | 5sets in back and front | 6sets in back and front | 7sets in back and front | 8sets in back and front | 9sets in back and front | 10sets in back and front |
| Vacuum pump | 7.5kw | 7.5kw | 11kw | 15kw | 18.5kw | 18.5kw | 22kw | 22kw | 22kw |
| Main driving motor powe | 3kw | 3kw | 4kw | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 7.5kw | 11kw |
| Machine size | 5×1.6×2m | 5×1.75×2m | 6×2.1×1.9m | 6×2.3×1.9m | 6×2.5×1.9m | 6×2.6×1.9m | 6×3×1.9m | 6×3.1×1.9m | 6×3.2×1.9m |
| Machine weight | 3000kg | 3500kg | 4500kg | 5500kg | 6500kg | 7500kg | 8000kg | 8300kg | 8500kg |
| Machine speed | 500-1000 sheet/min/lane | ||||||||
| Max.diameter of jumbo roll | Ф1200mm(other sizes can be ordered) | ||||||||
| Inner diameter of jumbo roll | Ф76.2mm(other sizes can be ordered) | ||||||||
| Air pressure | 0.8Mpa(user supplied) | ||||||||
