Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: DM-150
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 2sets
Delivery Time: 30 days
Supply Ability: 5 SETS PER MONTH
Color: |
White |
Speed: |
100cuts/min |
Control: |
Sevo Motor Feeding |
Grinding: |
Automatic |
Control System: |
PLC(SIEMENS) |
Parameters Setting: |
Touch Screen(SIEMENS) |
Voltage: |
380V |
Warranty: |
12 Months |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Usage: |
Band Saw |
Color: |
White |
Speed: |
100cuts/min |
Control: |
Sevo Motor Feeding |
Grinding: |
Automatic |
Control System: |
PLC(SIEMENS) |
Parameters Setting: |
Touch Screen(SIEMENS) |
Voltage: |
380V |
Warranty: |
12 Months |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Usage: |
Band Saw |
V fold Facial Tissue Soft Tissue Log Saw High Quality Machine
White Color V Fold Facial Log Saw Cutter Length 100- 240mm Sevo Motor Feeding

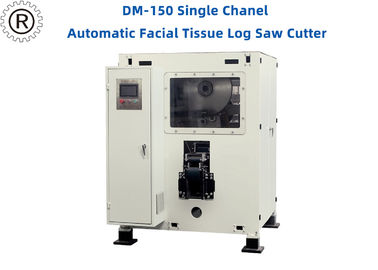

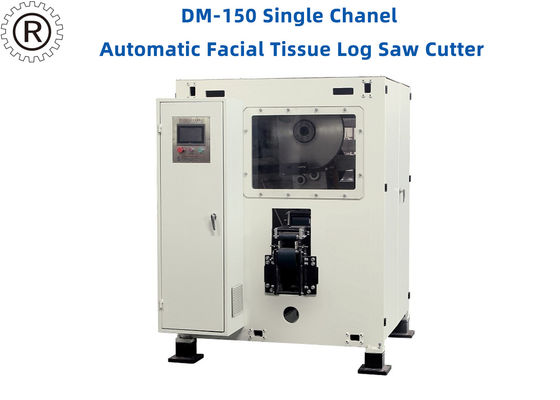

DM-150 log saw cutter
| model | DH-150 |
| Width of parent roll | 1800-3600mm(should be ordered) |
| Final Log Dia | (40-140) +/-2mm |
| Cutting length | 100- 240 mm (adjusted on touch screen) |
| Cutting feeding control | servo motor driving |
| Machine speed | 100cuts/min,2rolls/cut |
| Speed adjustment | frequency converter |
| Parameters setting | touch screen(SIEMENS) |
| Grinding system | pneumatic sharpening |
| Diameter of the bland | 610mm |
| Control system | PLC(SIEMENS) |
| Power | 11kw, 380V,50Hz |
