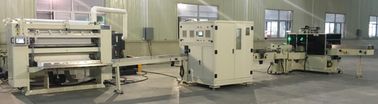

Vacuum Type Facial Tissue Production Line , Tissue Paper Converting Machine

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: FTM6-10T

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiable

Packaging Details: wooden pallet,1*40 feet container can load 1set

Delivery Time: 45 days

Supply Ability: 4sets per month

Get Best Price
Highlight:

facial tissue paper machine

,

tissue paper production machine

Price:
Economical
Automatic Type:
Semi Automatic
Voltage:
380v,50Hz
Machine Type:
Vacuum Type
Backstand:
2/4/6 Sets
Machine Used:
Facial Tissue Converting And Packing
Price:
Economical
Automatic Type:
Semi Automatic
Voltage:
380v,50Hz
Machine Type:
Vacuum Type
Backstand:
2/4/6 Sets
Machine Used:
Facial Tissue Converting And Packing
Vacuum Type Facial Tissue Production Line , Tissue Paper Converting Machine

FTM4T-10 Facial Tissue Folding Machine



MODEL FTM4T FTM5T FTM6T FTM7T FTM8T FTM9T FTM10T
Max. Width of jumbo roll 900mm 1050mm 1300mm 1450mm 1750mm 1950mm 2050mm
Slitting knife 4sets in back and front 5sets in back and front 6sets in back and front 7sets in back and front 8sets in back and front 9sets in back and front 10sets in back and front
Vacuum pump 11kw 15kw 18.5kw 18.5kw 22kw 22kw 22kw
Main driving motor powe 4kw 5.5kw 5.5kw 7.5kw 7.5kw 7.5kw 11kw
Machine size(m) 6×2.1×1.9 6×2.3×1.9 6×2.5×1.9 6×2.6×1.9 6×3×1.9 6×3.1×1.9 6×3.2×1.9
Machine weight 4500kg 5500kg 6500kg 7500kg 8000kg 8300kg 8500kg
Machine speed 500-1000 sheet/min/lane
Max.diameter of jumbo roll Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll Ф76.2mm(other sizes can be ordered)
Air pressure 0.8Mpa(user supplied)



YD-ZN150S High Speed Facial Tissue Log Saw Cutting Machine



MODEL YD-ZN150S
Cutting speed 30-120cuts/min
Cutting length 85-210mm
Cutting height 40-120mm
Cutting width 85-120mm
Power 8.6kw,380v,50Hz
Main driving motor power 4kw,380v,50Hz
Cutting circular blade driving motor 2.2kw,380v,50Hz
Tissue log feeding motor(servo motor) 3kw,380v,50Hz
Air pressure 0.6Mpa(user supply)
Machine size 2.2×1.22×2.05m



RC300B Full Automatic Plastic Film Facial Tissue Packing Machine



Model RC300B
Packing speed 30-80bag/min
Speed control MITSUBISHI frequency converter
After packing size L=(120-200)×W=(80-110)×H=(50-90)mm (3 sizes can be option)
Control system SIEMENS PLC control system
Parameter setting WEINVIEW touch screen
Total power 6.8kw,380v,50Hz
Air pressure 0.8Mpa
Machine size 3.65×6×1.85m
Machine weight 2300kg
Packing film material CPP,PE,OPP
