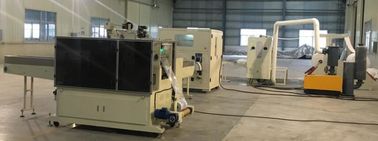

Soft Packing Facial Tissue Towel Packing Machine Steel Material Platic Film Packing Type

Large Image : Soft Packing Facial Tissue Towel Packing Machine Steel Material Platic Film Packing Type Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	ORGINAL
Model Number:	FTM6-10T

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	wooden pallet,1*40 feet container can load 1set
Delivery Time:	45 days
Supply Ability:	4sets per month

Contact Now

Detailed Product Description

Material:	Steel	Automatic Type:	Semi Automatic
Packing:	Platic Film Packing	Vacuum Pump:	Longtech
Backstand:	2/4/6 Sets	Voltage:	380V,50Hz
Highlight:	facial tissue making machine , facial tissue paper machine

FTM4T-10 Facial Tissue Folding Machine

Features:

High speed:1000sheet/min/lane
Control system:SIEMENS PLC control
Parameters setting:SIEMENS touch screen
Backstand transmission:separating motor driving
Main transmission system:timming belt

MODEL	FTM4T	FTM5T	FTM6T	FTM7T	FTM8T	FTM9T	FTM10T
Max. Width of jumbo roll	900mm	1050mm	1300mm	1450mm	1750mm	1950mm	2050mm
Slitting knife	4sets in back and front	5sets in back and front	6sets in back and front	7sets in back and front	8sets in back and front	9sets in back and front	10sets in back and front
Vacuum pump	11kw	15kw	18.5kw	18.5kw	22kw	22kw	22kw
Main driving motor powe	4kw	5.5kw	5.5kw	7.5kw	7.5kw	7.5kw	11kw
Machine size(m)	6×2.1×1.9	6×2.3×1.9	6×2.5×1.9	6×2.6×1.9	6×3×1.9	6×3.1×1.9	6×3.2×1.9
Machine weight	4500kg	5500kg	6500kg	7500kg	8000kg	8300kg	8500kg
Machine speed	500-1000 sheet/min/lane
Max.diameter of jumbo roll	Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll	Ф76.2mm(other sizes can be ordered)
Air pressure	0.8Mpa(user supplied)

YD-ZN150S High Speed Facial Tissue Log Saw Cutting Machine

Features:

Delta servo motor feeding driving,control precisely.
Delta PLC control programme makes control steadily.
610mm diameter good quality log saw blade extend the using time
Air TAC cylinder and valves from TAIWAN make the pneumatic system work smoothly.

MODEL	YD-ZN150S
Cutting speed	30-120cuts/min
Cutting length	85-210mm
Cutting height	40-120mm
Cutting width	85-120mm
Power	8.6kw,380v,50Hz
Main driving motor power	4kw,380v,50Hz
Cutting circular blade driving motor	2.2kw,380v,50Hz
Tissue log feeding motor(servo motor)	3kw,380v,50Hz
Air pressure	0.6Mpa(user supply)
Machine size	2.2×1.22×2.05m

RC300B Full Automatic Plastic Film Facial Tissue Packing Machine

Features:

SIEMENS PLC programme control makes work smoothly
MITSUBISHI frequency converter protect the speed control system
Weinview high sensitivity touch screen setting easily
Panasonic servo motor control makes film runs precisely

Model	RC300B
Packing speed	30-80bag/min
Speed control	MITSUBISHI frequency converter
After packing size	L=(120-200)×W=(80-110)×H=(50-90)mm (3 sizes can be option)
Control system	SIEMENS PLC control system
Parameter setting	WEINVIEW touch screen
Total power	6.8kw,380v,50Hz
Air pressure	0.8Mpa
Machine size	3.65×6×1.85m
Machine weight	2300kg
Packing film material	CPP,PE,OPP

FJ-3040C Semi automatic plastic bag facial tissue bundle packing machine

Features:

connect with the automatic single bag packing machine
Automatic bagging and tidying
PLC control
Packing size adjust easily
Double temperature control sealing

Model:	JF-3040C
Air pressure:	0.6-0.8Mpa
Power voltage:	220V 50/60HZ
Machine speed:	≤22bags/min
Max.packing size:	480×320×110mm(L×W×H)
Min.packing size:	220×150× 90mm(L×W×H)
Bag material:	OPP/PE
Total power:	1.2kw
Machine weight:	1000 kg
Machine size:	4000×1800×1300mm(L×W×H)
Packing arrange:	3,4,5,2×3,2×4,2×5 single bags
