Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: CJ180/190/200
Payment & Shipping Terms
Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: wooden pallet,2 feet container can load 1set
Delivery Time: 45 days
Supply Ability: 4sets per month
Price: |
Economical |
Speed: |
1000sheet/min/lane |
Voltage: |
380V,50Hz |
Vacuum Pump: |
Longtech |
Backstand: |
2-6sets |
Use: |
Facial Tissue Folding |
Price: |
Economical |
Speed: |
1000sheet/min/lane |
Voltage: |
380V,50Hz |
Vacuum Pump: |
Longtech |
Backstand: |
2-6sets |
Use: |
Facial Tissue Folding |

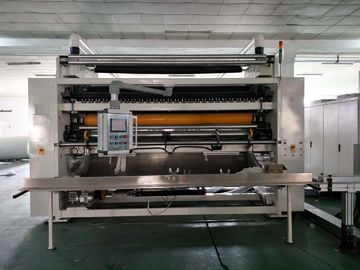

CJ180/190/200 Facial Tissue Folding Machine
MODEL | 5T | 6T | 7T | 9T | 10T | 14T |
Max. Width of jumbo roll | 1050mm | 1260mm | 1500mm | 1900mm | 2000mm | 2850mm |
Slitting knife | 5sets in back and front | 6sets in back and front | 7sets in back and front | 9sets in back and front | 10sets in back and front | 14sets in back and front |
Vacuum pump | 15kw | 18.5kw | 18.5kw | 22kw | 22kw | 50kw |
Main driving motor powe | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw |
Machine size | 6×2.3×1.9m | 6×2.5×1.9m | 6×2.8×1.9m | 6×3.3×1.9m | 6×3.5×1.9m | 6×4×1.9m |
Machine weight | 5500kg | 6500kg | 7500kg | 8300kg | 8500kg | 9500kg |
Machine speed | 500-1000 sheet/min/lane | |||||
Max.diameter of jumbo roll | Ф1200mm(other sizes can be ordered) | |||||
Inner diameter of jumbo roll | Ф76.2mm(other sizes can be ordered) | |||||
Bankstand | 2-6 jumbo rolls (should be ordered) | |||||
Embossing unit | Steel to rubber,steel to paper,steel to steel(should be ordered) | |||||
Edge embossing unit | Air bag type,bearing pattern(should be ordered) | |||||
Air pressure | 0.8Mpa(user supplied) |
