High Speed Automatic Saw Cutting Machine , Jumbo Roll Cutting Machine 380V 50/60Hz

High Speed Automatic Saw Cutting Machine , Jumbo Roll Cutting Machine 380V 50/60Hz
Features Gallery Product Description Request A Quote
Control System: MITSUBISHI PLC
Length Control: Servo Motor
Cutting Setting: Touch Screen
Voltage: 380V,50/60Hz
Grinding: Automatically
Recycle: Blowing Type
High Light:

automatic circular saw cutting machine


industrial saw machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: JH300C
Payment & Shipping Terms
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 40 working days
Supply Ability: 3sets per month
Product Description

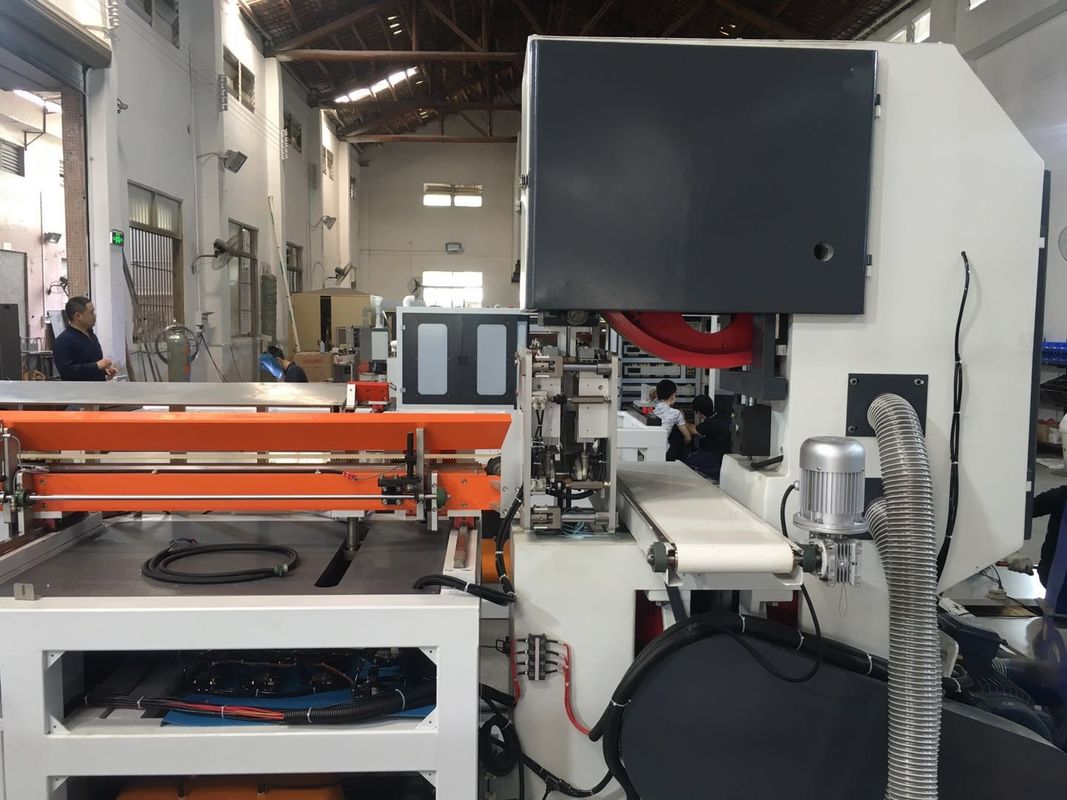

JH300C Fully automatic maxi roll band saw cutter



◆ Adopt touch screen setting,one key setting to change the cutting size,PLC control gramme easy to check the faults

       ◆ Fully automatic cutting and loading,keep the worker safe.

       ◆ This machine only can cutting maxi roll product.

◆ Parameters setting on the touch screen,and cutting products base on setting automatically

◆ Advance design,the main parts use the import material,others are Chinese standard ones.

        ◆ cutting size should be ordered..



Cutting speed:30-50cuts/min

Power voltage:380V 50Hz

Air pressure:0.6MPa(user supplied)

Total power:15KW

Standard cutting range:length:90-250mm, diameter:150-250mm/option diameter:150-300mm

Cutting length:90-500mm

Machine weight:3000KG

Band saw blade size:5180*90*1.2mm

Grinding wheel:SONGLIN



Main parts list

Air switch ZHENGTAI Ball bearings HRB or SKF
Contactor ZHENGTAI Pneumatic parts AIRTAC
Relay OMRON Timming belt GUANGZHOU
Brake resistor TAIWAN Timming wheel GUANGZHOU
Touch screen INVT Linear bearings HIWIN
Servo amplifier INVT Band saw blade KWANYE
Servo motor INVT Grinding wheel SONGLIN
Converter INVT Proximity switch YANGMING
Fuse FURONG Optoelectronic switch YANGMING
transformer ZHENGDA Air valves AIRTAC
