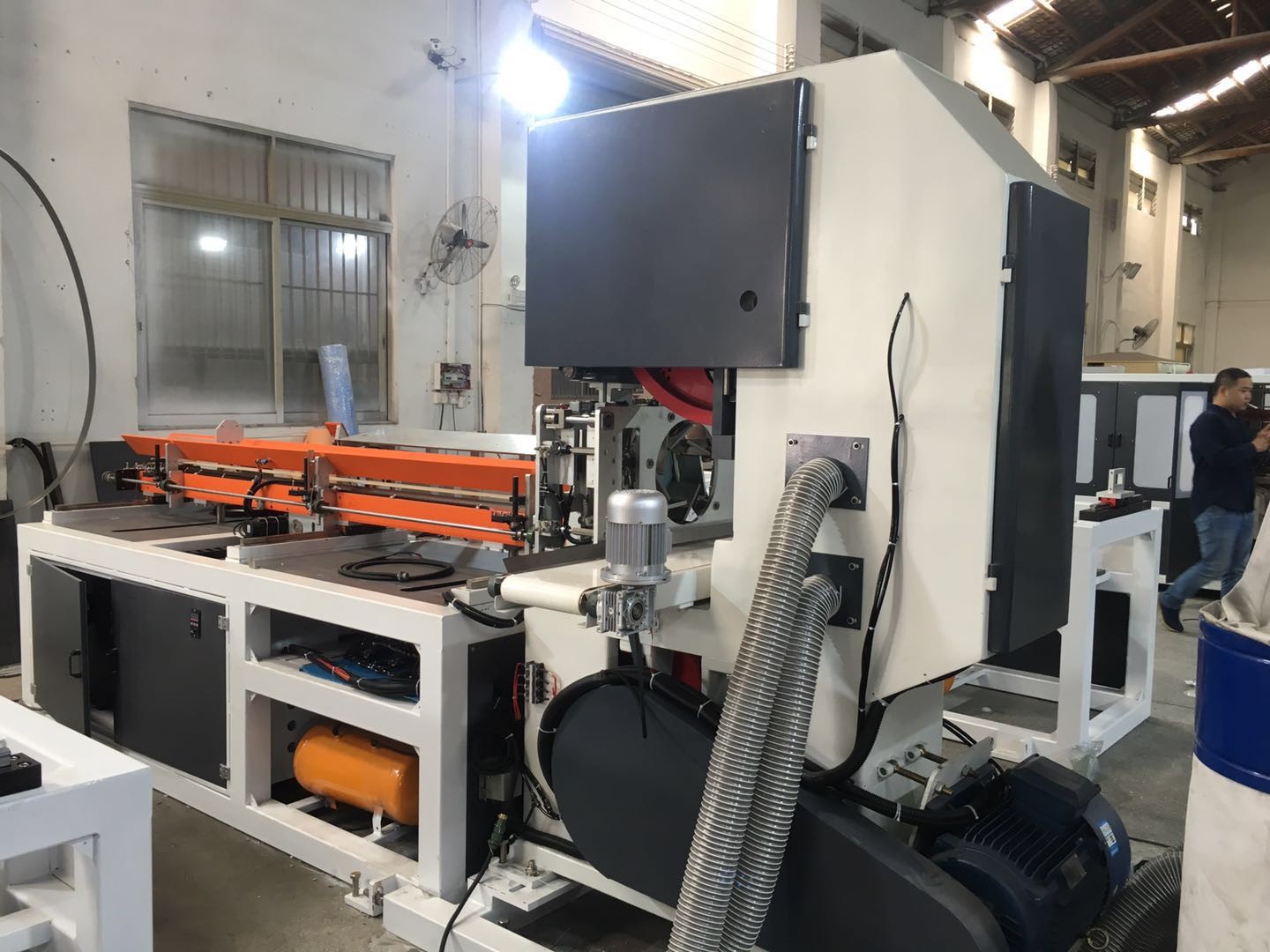

JH300C Fully automatic maxi roll band saw cutter
FEATURES:
◆ Adopt touch screen setting,one key setting to change the cutting size,PLC control gramme easy to check the faults
◆ Fully automatic cutting and loading,keep the worker safe.
◆ This machine only can cutting maxi roll product.
◆ Parameters setting on the touch screen,and cutting products base on setting automatically
◆ Advance design,the main parts use the import material,others are Chinese standard ones.
◆ cutting size should be ordered..
Parameters:
Cutting speed:30-50cuts/min
Power voltage:380V 50Hz
Air pressure:0.6MPa(user supplied)
Total power:15KW
Standard cutting range:length:90-250mm, diameter:150-250mm/option diameter:150-300mm
Cutting length:90-500mm
Machine weight:3000KG
Band saw blade size:5180*90*1.2mm
Grinding wheel:SONGLIN
Main parts list
| NAME | BRAND | NAME | BRAND |
| Air switch | ZHENGTAI | Ball bearings | HRB or SKF |
| Contactor | ZHENGTAI | Pneumatic parts | AIRTAC |
| Relay | OMRON | Timming belt | GUANGZHOU |
| Brake resistor | TAIWAN | Timming wheel | GUANGZHOU |
| Touch screen | INVT | Linear bearings | HIWIN |
| Servo amplifier | INVT | Band saw blade | KWANYE |
| Servo motor | INVT | Grinding wheel | SONGLIN |
| Converter | INVT | Proximity switch | YANGMING |
| Fuse | FURONG | Optoelectronic switch | YANGMING |
| transformer | ZHENGDA | Air valves | AIRTAC |
