Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: SCJ-A-4L
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 1sets
Delivery Time: 60 days
Supply Ability: 2sets per month
Folding Type: |
1/4,1/6,1/8 Folded |
Feeding Type: |
Pneumatic |
Cutting: |
Band Saw Blade |
Voltage: |
380V,50Hz |
Color Printing: |
0-2 Colors |
Embossing: |
Steel To Steel,steel To Rubber,steel To Paper |
Folding Type: |
1/4,1/6,1/8 Folded |
Feeding Type: |
Pneumatic |
Cutting: |
Band Saw Blade |
Voltage: |
380V,50Hz |
Color Printing: |
0-2 Colors |
Embossing: |
Steel To Steel,steel To Rubber,steel To Paper |

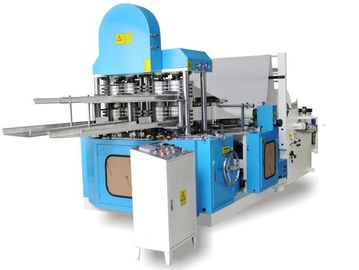

SCJ-A-4L Napkin Tissue Folding Machine
Features:
1. Frequency converter control
2. Automatic electrical counting
3. Pneumatic loading
4. Automatic stop while machine blocked
Specifies:
MODEL | 190 | 200 | 230 | 240 | 270 | 300 | 330 | 400 |
Max.jumbo roll width(mm) | 760 | 800 | 920 | 960 | 1080 | 1200 | 1320 | 1600 |
Folded size(mm) | 95*95 | 100*100 | 115*115 | 120*120 | 135*135 | 150*150 | 165*165 | 200*200 |
Unfolded size(mm) | 190*190 | 200*200 | 230*230 | 240*240 | 270*270 | 300*300 | 330*330 | 400*400 |
Max.jumbo roll diameter | 1100mm(other size should be ordered) | |||||||
Jumbo roll core inner diameter | 76.2mm | |||||||
Backstand | Fix type,pneumatic type(should be order) | |||||||
Folding style | 1/4 ,1/6,1/8 folded | |||||||
Color printing | 0-2 colors(should be ordered) | |||||||
Embossing unit | Steel to rubber,steel to paper,steel to steel(should be ordered) | |||||||
Counting | Electrical counter | |||||||
Speed control | Frequency converter | |||||||
Power | 3.7-5.5Kw,380V,50Hz | |||||||
Machine weight | About 2200-3200Kg |
