Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: ZH-XFCJ-4L
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 1sets
Delivery Time: 60 days
Supply Ability: 2sets per month
Folding Type: |
1/4,1/6,1/8 Folded |
Feeding Type: |
Pneumatic |
Folding: |
Vacuum Folding |
Power: |
3.7-5.5Kw,380V,50Hz |
Vacuum Pump: |
Root Vacuum Pump |
Embossing: |
Steel To Steel,steel To Rubber,steel To Paper |
Folding Type: |
1/4,1/6,1/8 Folded |
Feeding Type: |
Pneumatic |
Folding: |
Vacuum Folding |
Power: |
3.7-5.5Kw,380V,50Hz |
Vacuum Pump: |
Root Vacuum Pump |
Embossing: |
Steel To Steel,steel To Rubber,steel To Paper |

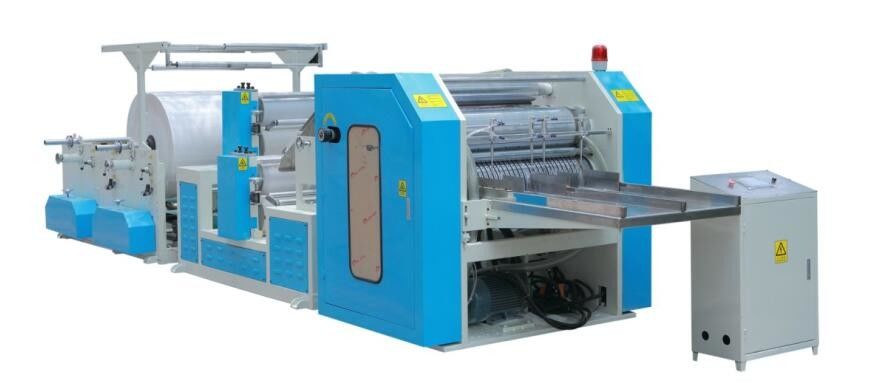

ZH-XFCJ-4L 4Lanes Napkin Tissue Folding Machine
Features:
1. Frequency converter control
2. Automatic electrical counting
3. Pneumatic loading
4. Automatic stop while machine blocked
Specifies:
| MODEL | ZH-XFCJ-4L |
| Max.jumbo roll width(mm) | 1600 |
| Folded size(mm) | 200*100 |
| Unfolded size(mm) | 400*400(other sizes can be ordered) |
| Max.jumbo roll diameter | 1100mm(other size should be ordered) |
| Jumbo roll core inner diameter | 76.2mm |
| Backstand | Fix type,pneumatic type(should be order) |
| Folding style | 1/4 ,1/6,1/8 folded |
| Color printing | 0-2 colors(should be ordered) |
| Embossing unit | Steel to rubber,steel to paper,steel to steel(should be ordered) |
| Counting | Electrical counter |
| Speed control | Frequency converter |
| Speed | 300-500sheet/min/lane*4lanes |
| Power | 4Kw,380V,50Hz |
| Vacuum pump | 15Kw,380V,50Hz root vacuum pump |
| Machine weight | About 3200Kg |
