Rewinding Toilet Paper Production Machine , Toilet Roll Maker Full Automatic

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: FJ-N2600//3000

Payment & Shipping Terms

Minimum Order Quantity: 1SEST

Price: Negotiable

Packaging Details: wooden pallet,2*40feet container can load 1 set

Delivery Time: 90 working days after receipt deposit

Supply Ability: 1set per month

Get Best Price
Highlight:

toilet paper making machine

,

toilet roll making machine

Rewinding Type:
Non-stop
Automatic:
Full Automatic
Capacity:
8-10tons/10hours
Speed:
200m/min
Voltage:
380V,50Hz
Servo Motor:
MITSUBISHI
PLC:
MITSUBISHI
Touch Screen:
MITSUBISHI
Rewinding Type:
Non-stop
Automatic:
Full Automatic
Capacity:
8-10tons/10hours
Speed:
200m/min
Voltage:
380V,50Hz
Servo Motor:
MITSUBISHI
PLC:
MITSUBISHI
Touch Screen:
MITSUBISHI

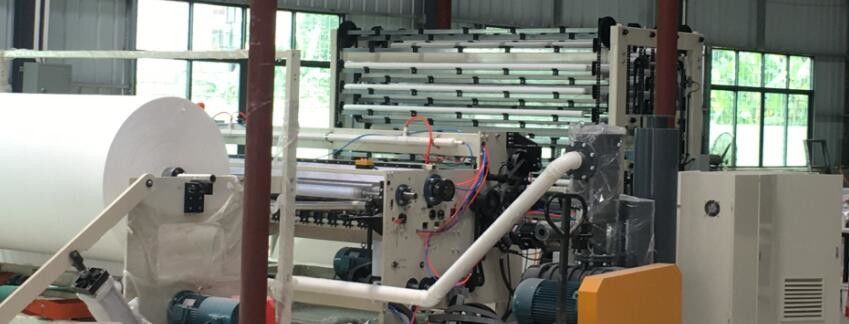

Rewinding Toilet Paper Production Machine , Toilet Roll Maker Full Automatic

FJ-N 3000/2600 High Speed Non-Stop Toilet Paper Rewinding Production Line



Features:



1. High speed:200m/min

2. High capacity:8tons/10hours

3. Non-stop working type,automatic and non-stop discharge rolls

4. MITSUBISHI PLC control makes work steadily

5. MITSUBISHI touch screen setting easy to change parameters

6. Automatic core feeding,tail trimming,and sealing

7. Separating motor driving

8. MITSUBISHI servo motor driving discharge rolls

9. Accumulator device

10. 2lanes high speed log saw cutter



MODLE FJ-N2600 FJ-N3000
Max.Jumbo roll width(mm) 2550 2950
Capacity 8tons/10hours 10tons/10hours
Finished product diameter(mm) Ф60-150
Finished product core inner diameter(mm) Ф32-50
Jumbo roll diameter(mm) ≤Ф1200(other size should be ordered)
Jumbo roll core inner diameter(mm) Ф76.2(other size should be ordered)
Perforating size(mm) 110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed 200m/min
Parameter setting MITSUBISHI touch screen
PLC control MITSUBISHI PLC
backstand 1-6sets(should be ordered)
Air pressure 0.8Mpa(user supply)
Power 15/25Kw,380V,50Hz(base on the model)
Option
Embossing unit Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
Backstand 1-6 sets(should be ordered)
Jumbo roll loading Pneumatic loader/elevator(should be ordered)
Lamination unit Point to point or glue for nest(should be ordered)
Core or coreless unit Should be ordered
Core winding machine Should be ordered
Automatic core feeding device 300-600PCS storage(should be ordered)
Edge embossing unit Air bag type(should be ordered)
Calendering unit Steel to steel/steel to rubber(should be ordered)
Accumulator 110-210rolls type(should be ordered)
Log saw cutter 2 lanes log saw cutter(should be ordered)
