15Kw Toilet Paper Manufacturing Machine , Tissue Packaging Machine MITSUBISHI Touch Screen

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: JHTRH-35

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiable

Packaging Details: wooden pallet packing,1*20feet container can load 1 set

Delivery Time: 60 working days

Supply Ability: 2sets per month

Get Best Price
Highlight:

toilet roll making machine

,

toilet tissue making machine

Automatic Type:
Full Automatic
Packing Material:
PE,OPP Pre-made Bag
Voltage:
380V,50Hz
Machine Control:
MITSUBISHI PLC
Bag Feeding:
Vacuum Type
Servo Control:
INVT
Automatic Type:
Full Automatic
Packing Material:
PE,OPP Pre-made Bag
Voltage:
380V,50Hz
Machine Control:
MITSUBISHI PLC
Bag Feeding:
Vacuum Type
Servo Control:
INVT
15Kw Toilet Paper Manufacturing Machine , Tissue Packaging Machine MITSUBISHI Touch Screen

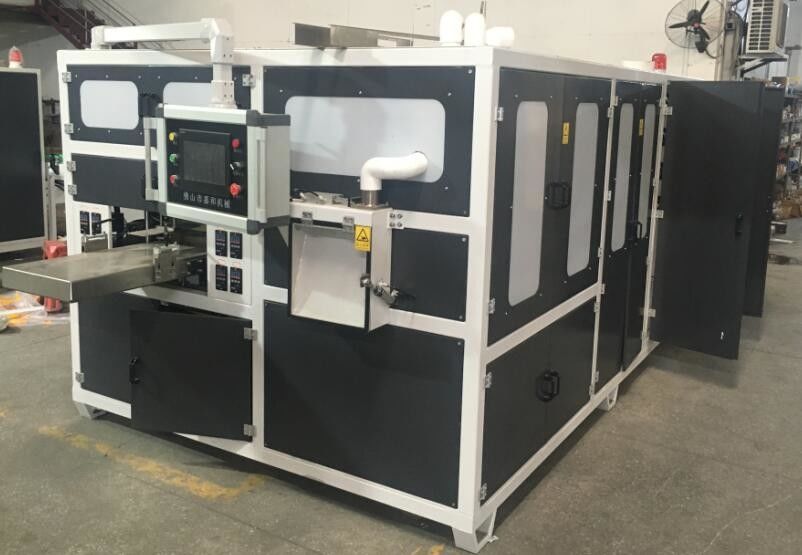

JHTRH-35 Automatic Toilet Rolls Bundle Packing Machine



Machine packing range:L(90-660mm)*W(180-220mm)*H(90-120mm)

Customer Packing size: 1*2;2*2;2*3;2*4;2*5;2*6 rolls

Packing speed: 12-20bags/min

Parameters setting: MITSUBISHI touch screen

Control system:MITSUBISHI PLC

Servo motor:4sets servo motor(INVT)

Packing type:automatic bagging and sealing

Conveyor: 6 meters straight conveyor

Tissue tidy: automatic tidying system

Total power:15Kw,380V,50Hz

Air pressure:0.6Mpa(user supplied)

Packing material: OPP,CPP,PE hot sealing pre-made bag







Machine features:

1. adopt PLC and servo motors to drive the products feeding,overturn,counting,bag feeding,bag opening,bagging,sealing automatically.
2. bagging and sealing:adopt the mould negative pressure type bagging and sealing to keep the products shape nicely.
3. HIM:adopt MITSUBISHI touch screen to set the parameter to help to operate the machine easily.

4. Fault tracked and warmed:the fault will be showed on the touch screen and tracked the reason to make easy to solve the fault.

5. monitoring system:bags controlled,product checking to keep the machine won’t pack without products;and the checking system help to output the defective goods.In case that the bag can not open,machine will automatic stop.In case the bag is fault and can not open,the bag will output automatically.

6. packing speed: controlled by the frequency converter,easy adjustable.

7. temperature system:adopt copper billet thermostabilized heating,AC control type to fit the bag’s corona,keep the false sealing out.
8, adopt the single feeding channel,connect with the single packing machine easily.
