Automatic Tissue Paper Cutting And Packing Machine 12-20 Bags / Min Packing Speed

Automatic Tissue Paper Cutting And Packing Machine 12-20 Bags / Min Packing Speed
Features Gallery Product Description Request A Quote
Automatic Type: Full Automatic
Packing Type: 1*2,2*2,3*2,4*2,5*2,6*2
Voltage: 380V,50Hz
Machine Control: MITSUBISHI PLC
Bag Feeding: Vacuum Type
Servo Control: INVT
High Light:

toilet paper making machine


toilet roll making machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: JHTRH-35
Payment & Shipping Terms
Packaging Details: wooden pallet packing,1*20feet container can load 1 set
Delivery Time: 60 working days
Supply Ability: 2sets per month
Product Description

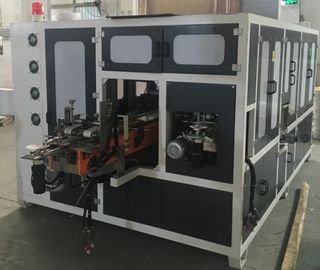

JHTRH-35 Automatic Toilet Rolls Bundle Packing Machine

Machine packing range:L(90-660mm)*W(180-220mm)*H(90-120mm)

Customer Packing size: 1*2;2*2;2*3;2*4;2*5;2*6 rolls

Packing speed: 12-20bags/min

Parameters setting: MITSUBISHI touch screen

Control system:MITSUBISHI PLC

Servo motor:4sets servo motor(INVT)

Packing type:automatic bagging and sealing

Conveyor: 6 meters straight conveyor

Tissue tidy: automatic tidying system

Total power:15Kw,380V,50Hz

Air pressure:0.6Mpa(user supplied)

Packing material: OPP,CPP,PE hot sealing pre-made bag


Machine features:

1. adopt PLC and servo motors to drive the products feeding,overturn,counting,bag feeding,bag opening,bagging,sealing automatically.
2. bagging and sealing:adopt the mould negative pressure type bagging and sealing to keep the products shape nicely.
3. HIM:adopt MITSUBISHI touch screen to set the parameter to help to operate the machine easily.

4. Fault tracked and warmed:the fault will be showed on the touch screen and tracked the reason to make easy to solve the fault.

5. monitoring system:bags controlled,product checking to keep the machine won’t pack without products;and the checking system help to output the defective goods.In case that the bag can not open,machine will automatic stop.In case the bag is fault and can not open,the bag will output automatically.

6. packing speed: controlled by the frequency converter,easy adjustable.
7, adopt the single feeding channel,connect with the single packing machine easily.
