380 Volt Tissue Paper Manufacturing Machine , Tissue Packaging Machine High Speed

Product Details

Place of Origin: CHINA(Mailand)

Brand Name: ORGINAL

Model Number: JHFTH-65

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiable

Packaging Details: wooden pallet,20 feet container can load 1set

Delivery Time: 60 days

Supply Ability: 2 sets per month

Get Best Price
High Light:

facial tissue paper machine

,

tissue paper production machine

Control:
MITSUBISHI PLC
Servo Motor:
INVT
Packing Material:
Pre-made Bag
Parameters Setting:
MITSUBISHI Touch Screen
Voltage:
380V,50Hz
Speed:
10-17 Bags/min
Control:
MITSUBISHI PLC
Servo Motor:
INVT
Packing Material:
Pre-made Bag
Parameters Setting:
MITSUBISHI Touch Screen
Voltage:
380V,50Hz
Speed:
10-17 Bags/min
380 Volt Tissue Paper Manufacturing Machine , Tissue Packaging Machine High Speed

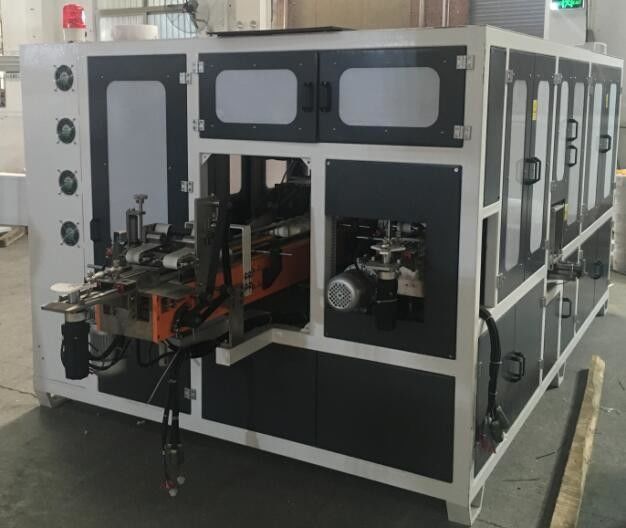

JHFTH-65 automatic facial tissue bundle packing machine



Machine packing range:L(210-420mm)*W(150-400mm)*H(90-120mm)

Customer Packing size: 210*190mm(3pcs),350*190mm(5pcs),350*380mm(10pcs),420*380mm(12pcs)

Packing speed: 10-17bags/min

Parameters setting: MITSUBISHI touch screen

Control system:MITSUBISHI PLC

Servo motor:5sets servo motor(INVT)

Packing type:automatic bagging and sealing

Conveyor: 6 meters straight conveyor

Tissue tidy: automatic tidying system

Total power:15Kw,380V,50Hz

Air pressure:0.6Mpa(user supplied)

Packing material: OPP,CPP,PE hot sealing pre-made bag





Machine features:

1. adopt PLC and servo motors to drive the products feeding,overturn,counting,bag feeding,bag opening,bagging,sealing automatically.
2. bagging and sealing:adopt the mould negative pressure type bagging and sealing to keep the products shape nicely.
3. HIM:adopt MITSUBISHI touch screen to set the parameter to help to operate the machine easily.

4. Fault tracked and warmed:the fault will be showed on the touch screen and tracked the reason to make easy to solve the fault.

5. monitoring system:bags controlled,product checking to keep the machine won’t pack without products;and the checking system help to output the defective goods.In case that the bag can not open,machine will automatic stop.In case the bag is fault and can not open,the bag will output automatically.

6. packing speed: controlled by the frequency converter,easy adjustable.

7. temperature system:adopt copper billet thermostabilized heating,AC control type to fit the bag’s corona,keep the false sealing out.
