Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: Dj-A-3000
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 2sets
Delivery Time: 30 days
Supply Ability: 5SETS PER MONTH
Speed: |
80cuts/per Min |
Colour: |
Blue And White |
Voltage: |
380V,50Hz |
Weight: |
About 1ton |
Control System: |
PLC |
Main Motor Power: |
7.5KW |
Usage: |
Cutting Toilet/JRT Roll |
Speed: |
80cuts/per Min |
Colour: |
Blue And White |
Voltage: |
380V,50Hz |
Weight: |
About 1ton |
Control System: |
PLC |
Main Motor Power: |
7.5KW |
Usage: |
Cutting Toilet/JRT Roll |
Fully Automatic Toilet Paper Roll Cutting Machine , High Speed Band Saw Cutting Machine

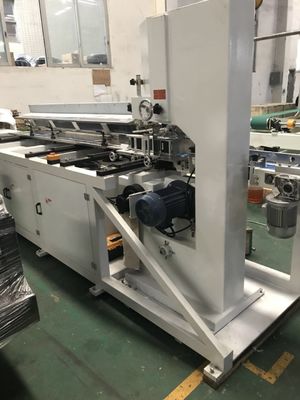

DJ-A-3000 High Speed Automatic Band Saw Cutting Machine
Features:
1. easy to control
2. speed:80cuts/min
3. It can be connected with rewinding machine , can be the part of semi automatic production line
4. Customer can set technical data on operating touch screen.
| MODLE | DJ-A-3000 |
| Max.roll length | 2000/3000mm(should be ordered) |
| Cutting length | 50-220mm(setting on touch screen) |
| Cutting roll diameter | 55-125mm(with core) |
| Cutting speed | 50-80cuts/min |
| Speed control | frequency converter(DELTA) |
| Parameter setting | touch screen(DELTA) |
| PLC control | DELTA |
| Servo motor control | DELTA |
| Power | 4kw,380V,50Hz |
| Air pressure | 0.6Mpa(user supply) |
| Machine weight | About 1000kg |
| Machine size |
4450*2200*1870mm
|
