Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: ZE-FJ-F
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden case,20feet container can load 1set
Delivery Time: 60days
Supply Ability: 3SETS PER MONTH
High Speed: |
250m/min |
Separating Driving: |
Separating Motor Driving |
Embossing: |
Steel To Rubber Embossing Unit |
Good Quality: |
SIEMENS PLC |
Voltage: |
380V,50Hz |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
High Speed: |
250m/min |
Separating Driving: |
Separating Motor Driving |
Embossing: |
Steel To Rubber Embossing Unit |
Good Quality: |
SIEMENS PLC |
Voltage: |
380V,50Hz |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Warranty: |
1 Year |
High Speed Toilet Maxi/JRT/HRT Slitting Rewinding separating motor driving Machine

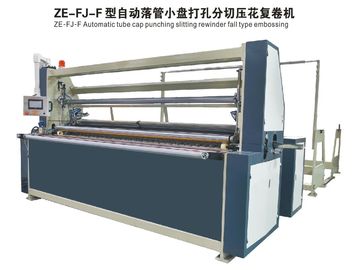

ZE-FJ-F High speed toilet paper rewinding machine
Features:
1. High speed:250m/min
2. Easy to adjust the slitting size(pneumatic type)
3. One machine can make 2 width products
4. Finished product diamter easy to change(cylinder control)
5. tight or loose easy to adjust(pneuamtic control)
| MODLE | 1575 | 1760 | 2200 | 2500 | 2800 | 2900 | 3000 |
| Max.Jumbo roll width(mm) | 1750 | 2000 | 2150 | 2400 | 2750 | 2850 | 2950 |
| Finished product diameter(mm) | Ф120-250 | ||||||
| Finished product core inner diameter(mm) | Ф32-50 | ||||||
| Jumbo roll diameter(mm) | ≤Ф1200(other size should be ordered) | ||||||
| Jumbo roll core inner diameter(mm) | Ф76.2(other size should be ordered) | ||||||
| Perforating size(mm) | 110mm(other size should be ordered,4PCS spiral perforating blade) | ||||||
| Machine speed | 250m/min | ||||||
| Parameter setting | SIEMENS touch screen | ||||||
| PLC control | SIEMENS PLC | ||||||
| backstand | 1-4sets(should be ordered) | ||||||
| Air pressure | 0.8Mpa(user supply) | ||||||
| Power | 13.5-35Kw,380V,50Hz(base on the model) | ||||||
| Option | |||||||
| Embossing unit | Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered) | ||||||
| backstand | 1-4 sets(should be ordered) | ||||||
| Transmission | Separating motor driving/timming belt transmission/chain and chain wheel transmission | ||||||
| Core or coreless unit | Should be ordered | ||||||
| Edge embossing unit | Air bag type(should be ordered) | ||||||
| Calendering unit | Steel to steel/steel to rubber(should be ordered) | ||||||
