Adjsutable Slitting Width Toilet Tissue Machine With Air Shaft Slitter Rewinding , Servo Motor

1set
MOQ
Negotiable
Price
Adjsutable Slitting Width Toilet Tissue Machine With Air Shaft Slitter Rewinding , Servo Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Backstand: 1-4 SETS
Slitting Width: Adjsutable
Speed: 200m/min
Rewinding Roll: Air Shaft
Tightness Control: Pneumatic
Voltage: 380V/50HZ
Computerized: Yes
Power(w): 7.5kw
High Light:

paper slitter rewinder

,

paper slitting machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: ZE-FJ-F
Payment & Shipping Terms
Packaging Details: wooden pallet,1 20feet container can load 1set
Delivery Time: 60 days
Supply Ability: 2 sets per month
Product Description

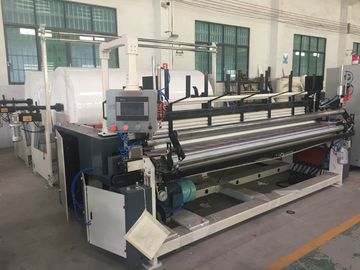

Toilet tissue Machine with Air Shaft Slitter Rewinding , high quality servo motor



ZE-FJ-F Slitting Rewinding Machine



Features:

1. high speed:200-300m/min

2. Separating motor driving

3. SIEMENS PLC controlling

4. SIEMENS touch screen setting



Parameters:

Model 1092 1575 2000 2200 2900
Max.width of jumbo roll(mm) 1350 1750 2000 2150 2850
Diameter of jumbo roll(mm) ≤1200mm
Finished products diameter(mm) 1200
Finished product width(mm) adjustable
Backstand 1-6sets(should be ordered)
Air shaft 1-4pcs(should be ordered)
Calendering unit Steel to rubber,steel to steel(should be ordered)
Transmission system Chain and chain wheel or separating motor driving(should be ordered)
Power 5.5-11Kw,380V,50Hz(base on the model)
Air pressure 0.8Mpa(user supplied)
Machine size(mm) 6200*2600*1800-6200*4000*1800(L*W*H,base on model)
