Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: ZN-DH-2000
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 2sets
Delivery Time: 30 days
Supply Ability: 5SETS PER MONTH
Voltage: |
380V,50Hz |
Servo Motor: |
DELTA |
Control System: |
PLC |
Main Motor Power: |
11Kw |
Parameter Setting: |
Touch Screen |
Voltage: |
220v / 380v |
Warranty: |
1 Year |
After-sales Service Provided: |
Online Support |
Usage: |
Band Saw |
Product Type: |
Toilet Tissue |
Voltage: |
380V,50Hz |
Servo Motor: |
DELTA |
Control System: |
PLC |
Main Motor Power: |
11Kw |
Parameter Setting: |
Touch Screen |
Voltage: |
220v / 380v |
Warranty: |
1 Year |
After-sales Service Provided: |
Online Support |
Usage: |
Band Saw |
Product Type: |
Toilet Tissue |

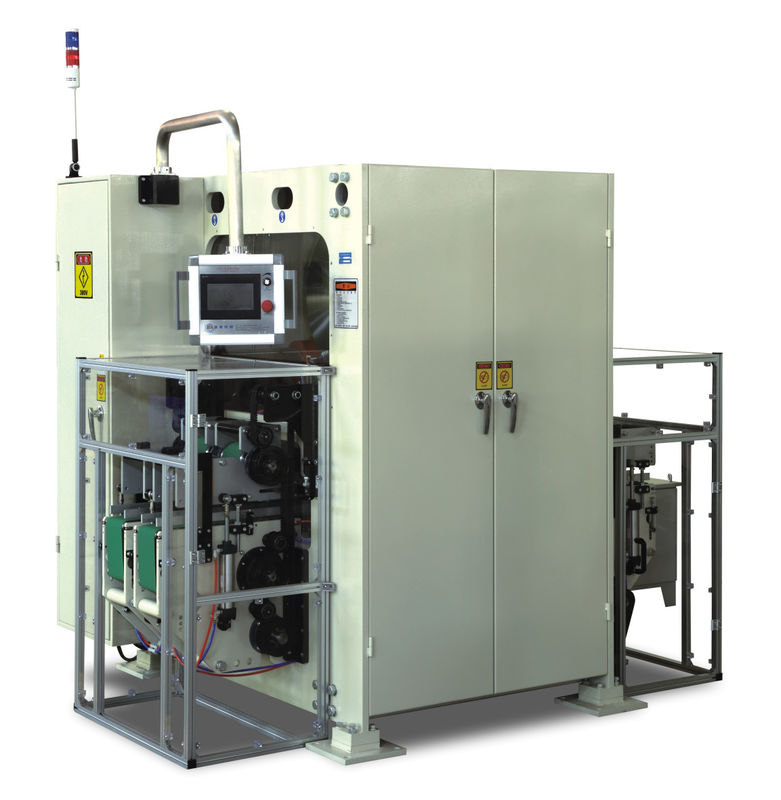

ZN-HD-2000/3000automatic band saw cutter
Features:
1. economical
2. speed:80cuts/min
3. easy to connect rewinding machine
4. easy to setting parameter on touch screen
MODLE | HD-2000/3000 |
Max.roll length | 2000/3000mm(should be ordered) |
Cutting length | 50-220mm(setting on touch screen) |
Cutting roll diameter | 55-125mm(with core) |
Cutting speed | 50-80cuts/min |
Speed control | frequency converter(DELTA) |
Parameter setting | touch screen(DELTA) |
PLC control | DELTA |
Servo motor control | DELTA |
Power | 4kw,380V,50Hz |
Air pressure | 0.6Mpa(user supply) |
Machine weight | About 1000kg |
Machine size | 4450*2200*1870mm |
