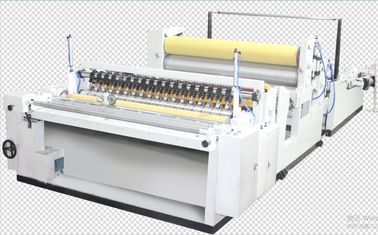

JRT / Kitchen Towel / Toilet Tissue Paper Production Line Siemens PLC With Embossing And Glue Lamination System

1SET
MOQ
Negotiable
Price
JRT / Kitchen Towel / Toilet Tissue Paper Production Line Siemens PLC With Embossing And Glue Lamination System
Features Gallery Product Description Request A Quote
Features
Specifications
High Speed: 250m/min
Separating Driving: Separating Motor Driving
Backstand Adding: Easy To Add Backstand
Color: White And Blue
Good Quality: SIEMENS PLC
Embossing: Steel To Rubber Or Steel To Steel
Glue Lamination: Included
Voltage: 380V
Power(w): 15KW
Raw Material: Virgin Pulp
High Light:

tissue paper manufacturing machine

,

tissue making equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: MZQ-III-E250-2900
Payment & Shipping Terms
Packaging Details: wooden case,20feet container can load 1set
Delivery Time: 30days
Supply Ability: 3SETS PER MONTH
Product Description



Toilet Tissue/JRT/Kitchen Towel SIEMENS PLC with embossing and glue lamination system , high speed economical price



MZQ-III-E250-2900  High speed toilet paper rewinding machine

MODLE 1575 1760 2200 2500 2800 2900 3000
Max.Jumbo roll width(mm) 1750 2000 2150 2400 2750 2850 2950
Finished product diameter(mm) Ф60-150
Finished product core inner diameter(mm) Ф32-50
Jumbo roll diameter(mm) ≤Ф1200(other size should be ordered)
Jumbo roll core inner diameter(mm) Ф76.2(other size should be ordered)
Perforating size(mm) 110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed 250m/min
Parameter setting SIEMENS touch screen
PLC control SIEMENS PLC
backstand 1-4sets(should be ordered)
Air pressure 0.8Mpa(user supply)
Power 13.5-35Kw,380V,50Hz(base on the model)
Option
Embossing unit Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
backstand 1-4 sets(should be ordered)
Transmission Separating motor driving/timming belt transmission/chain and chain wheel transmission
Core or coreless unit Should be ordered
Edge embossing unit Air bag type(should be ordered)
Calendering unit Steel to steel/steel to rubber(should be ordered)
