Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: HD-2000
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 2sets
Delivery Time: 40 days
Supply Ability: 3SETS PER MONTH
Machine Speed: |
80cuts/min |
Conditon: |
Complete New |
Voltage: |
380V,50Hz |
Power: |
4Kw |
Weight: |
1-5 Ton |
After-sales Service Provided: |
Overseas Third-party Support Available |
Color: |
Blue Or Customized |
Machine Speed: |
80cuts/min |
Conditon: |
Complete New |
Voltage: |
380V,50Hz |
Power: |
4Kw |
Weight: |
1-5 Ton |
After-sales Service Provided: |
Overseas Third-party Support Available |
Color: |
Blue Or Customized |

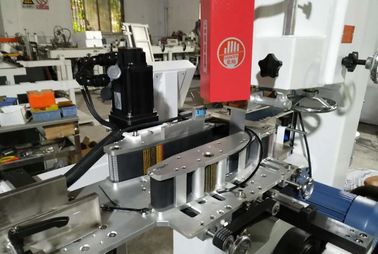

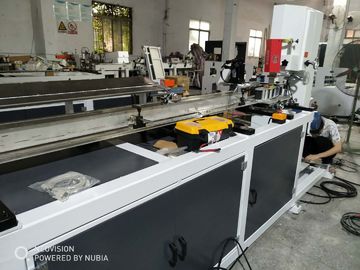

Automatic BAND SAW CUTTING suitable for toilet tissue and kitchen towel can be connected with converting machine
HD-2000 automatic band saw cutter
Features:
1. PLC programme control
2. servo motor feeding
3. Delta touch screen parameters setting
4. Fully automatic working
| MODLE | HD-2000 |
| Max.roll length | 2000mm(should be ordered) |
| Cutting length | 50-220mm(setting on touch screen) |
| Cutting roll diameter | 55-125mm(with core) |
| Cutting speed | 50-80cuts/min |
| Speed control | frequency converter(DELTA) |
| Parameter setting | touch screen(DELTA) |
| PLC control | DELTA |
| Servo motor control | DELTA |
| Power | 4kw,380V,50Hz |
| Air pressure | 0.6Mpa(user supply) |
| Machine weight | About 1000kg |
| Machine size | 4450*2200*1870mm |
