Home > products > Tissue Paper Production Line > Double Line High Speed Tissue Tissue Production Line With Separator System

Double Line High Speed Tissue Tissue Production Line With Separator System

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: CM-1000

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: Negotiable

Packaging Details: Wooden Case 20 feet container can load 2 sets

Delivery Time: 30

Supply Ability: 3SETS PER MONTH

Get Best Price
Highlight:

tissue paper manufacturing machine

,

tissue making equipment

Automatic:
Automatic
Voltage:
380V,50Hz
Folding Type:
Vortex Vacuum Pump
Single Packing:
Automatic
Bundle Packing:
Automatic
Packing Size:
Standard Size And Mini Size
Power(w):
5.5KW
Warranty:
1 Year
Speed:
800-1200/min/line
Automatic:
Automatic
Voltage:
380V,50Hz
Folding Type:
Vortex Vacuum Pump
Single Packing:
Automatic
Bundle Packing:
Automatic
Packing Size:
Standard Size And Mini Size
Power(w):
5.5KW
Warranty:
1 Year
Speed:
800-1200/min/line

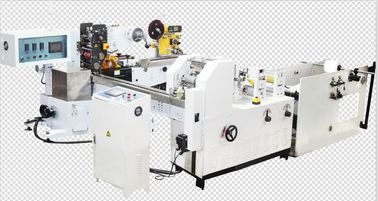

Double Line High Speed Tissue Tissue Production Line With Separator System

Double Line High Speed Economical Pocket Tissue Production Line with separator system



ML-IV 2LANES  Automatic pocket tissue folding machine WITH Separator

Model ML-IV 2LANES
Max.Jumbo roll width 200-201mm
Max.jumbo roll diameter 1500mm
Finished product size (50-54)*(72/102)mm should be chosen
Embossing unit Steel to rubber/steel to paper/steel to steel(option)
Vacuum pump 7.5Kw,380V,50Hz
Counting Automatic counting,6/8/10/12pcs,setting on touch screen
Parameter setting Touch screen
Main power 5.5Kw,380V,50Hz
Working speed 600-650pcs/min
Air pressure 0.8Mpa
Machine size 2380*750*1570mm



XB202 Automatic Pocket Tissue Packing Machine

Model XB202
Packing size (70-110)*(50-55)*(20-28)mm(L*W*H)
Working speed 60-105bags/min
Machine power 4.68Kw,380V,50Hz
Air pressure 0.8Mpa
Packing film material CPP,PE,OPP
PLC control SIEMENS
Frequency converter MITSUBISHI
Parameter setting Touch screen(Weinview)
Machine size 2840*2650*1720mm(L*W*H)
Machine weight About 1500Kg



TB380B Automatic Bundle Wrapping Machine

Model TB380B
Packing size (150-300)*(70-150)*(42-84)mm(L*W*H)
Working speed 10-15bags/min
Power 3.5Kw,380V,50Hz
Air pressure 0.8Mpa
Parameter setting Touch screen(Weinview)
PLC control SIEMENS
Packing film material CPP,PE,OPP
Machine size 2500*3200*1550mm(L*W*H)
Machine weight About 1200Kg
