Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: NS-3000
Payment & Shipping Terms
Minimum Order Quantity: 1SEST
Price: Negotiable
Packaging Details: wooden pallet,2*40feet container can load 1 set
Delivery Time: 90 working days after receipt deposit
Supply Ability: 1set per month
Rewinding Type: |
Non-stop |
Automatic: |
Full Automatic |
Capacity: |
8-10tons/10hours |
Production Speed: |
200m/min |
Voltage: |
380V,50Hz |
Servo Motor: |
MITSUBISHI |
PLC: |
MITSUBISHI |
Touch Screen: |
MITSUBISHI |
Gurantee Time: |
One Year |
Voltage: |
380V |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Rewinding Type: |
Non-stop |
Automatic: |
Full Automatic |
Capacity: |
8-10tons/10hours |
Production Speed: |
200m/min |
Voltage: |
380V,50Hz |
Servo Motor: |
MITSUBISHI |
PLC: |
MITSUBISHI |
Touch Screen: |
MITSUBISHI |
Gurantee Time: |
One Year |
Voltage: |
380V |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |

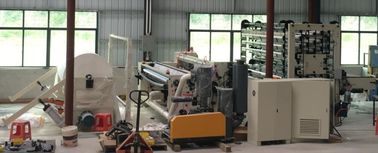

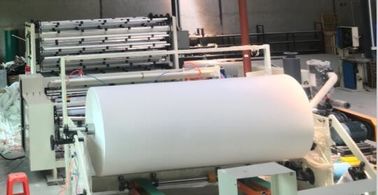

NS- 3000 High Speed Non-Stop Toilet Paper Rewinding Production Line
Features:
1. High speed:200m/min
2. High capacity:8tons/10hours
3. Non-stop working type,automatic and non-stop discharge rolls
4. MITSUBISHI PLC control makes work steadily
5. MITSUBISHI touch screen setting easy to change parameters
6. Automatic core feeding,tail trimming,and sealing
7. Separating motor driving
8. MITSUBISHI servo motor driving discharge rolls

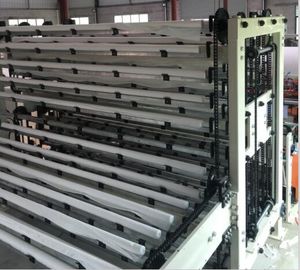

9. Accumulator device
10. 2lanes high speed log saw cutter
MODLE | NS-2600 | NS-3000 |
Max.Jumbo roll width(mm) | 2550 | 2950 |
Capacity | 8tons/10hours | 10tons/10hours |
Finished product diameter(mm) | Ф60-150 | |
Finished product core inner diameter(mm) | Ф32-50 | |
Jumbo roll diameter(mm) | ≤Ф1200(other size should be ordered) | |
Jumbo roll core inner diameter(mm) | Ф76.2(other size should be ordered) | |
Perforating size(mm) | 110mm(other size should be ordered,4PCS spiral perforating blade) | |
Machine speed | 200m/min | |
Parameter setting | MITSUBISHI touch screen | |
PLC control | MITSUBISHI PLC | |
backstand | 1-6sets(should be ordered) | |
Air pressure | 0.8Mpa(user supply) | |
Power | 15/25Kw,380V,50Hz(base on the model) | |
Option | ||
Embossing unit | Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered) | |
Backstand | 1-6 sets(should be ordered) | |
Jumbo roll loading | Pneumatic loader/elevator(should be ordered) | |
Lamination unit | Point to point or glue for nest(should be ordered) | |
Core or coreless unit | Should be ordered | |
Core winding machine | Should be ordered | |
Automatic core feeding device | 300-600PCS storage(should be ordered) | |
Edge embossing unit | Air bag type(should be ordered) | |
Calendering unit | Steel to steel/steel to rubber(should be ordered) | |
Accumulator | 110-210rolls type(should be ordered) | |
Log saw cutter | 2 lanes log saw cutter(should be ordered) |
