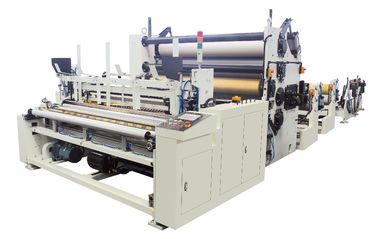

15KW Tissue Folding Machine , Big Toilet Roll Glue Lamination System Kitchen Towel Rewinding Machine

15KW Tissue Folding Machine , Big Toilet Roll Glue Lamination System Kitchen Towel Rewinding Machine
Features Gallery Product Description Request A Quote
Embossing: Steel To Rubber
Vacuum Pump: Root Vacuum Pump
Unwinding: 1-3sets
Gsm: 13-15gsm/ply, 1-3ply
Glue Lamination: With Glue Lamination System
Power: 15KW
Maximum Jumbo Roll Width: 2950mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Type: Cylinder
High Light:

industrial paper folding machine


tissue paper folding machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: DM-OR-250-2900
Payment & Shipping Terms
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 60 days
Supply Ability: 3 sets per month
Product Description

Big Toilet Roll Glue Lamination System Kitchen Towel Hot Popular Rewinding Machine


Kitchen Towel Tissue Production Line

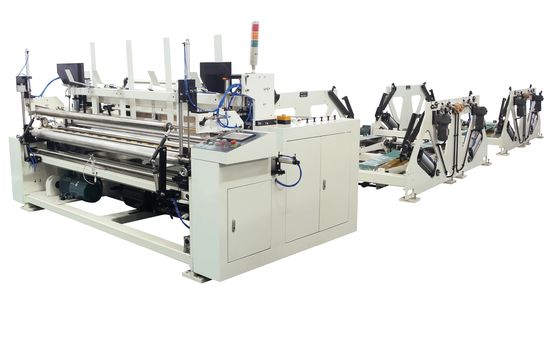

DM-OR-250-2900 Toilet /Kitchen Towel Rewinding Machine



MODLE 1575 1760 2200 2500 2800 2900 3000
Max.Jumbo roll width(mm) 1750 2000 2150 2400 2750 2850 2950
Finished product diameter(mm) Ф60-150
Finished product core inner diameter(mm) Ф32-50
Jumbo roll diameter(mm) ≤Ф1200(other size should be ordered)
Jumbo roll core inner diameter(mm) Ф76.2(other size should be ordered)
Perforating size(mm) 110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed 250m/min
Parameter setting SIEMENS touch screen
backstand 1-4sets(should be ordered)
Air pressure 0.8Mpa(user supply)
Power 13.5-35Kw,380V,50Hz(base on the model)
Embossing unit Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
backstand 1-4 sets(should be ordered)
Transmission Separating motor driving/timming belt transmission/chain and chain wheel transmission
Lamination unit Should be ordered
Edge embossing unit Air bag type(should be ordered)
Calendering unit Steel to steel/steel to rubber(should be ordered)
