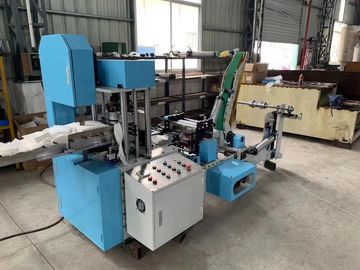

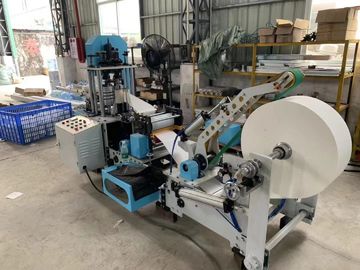

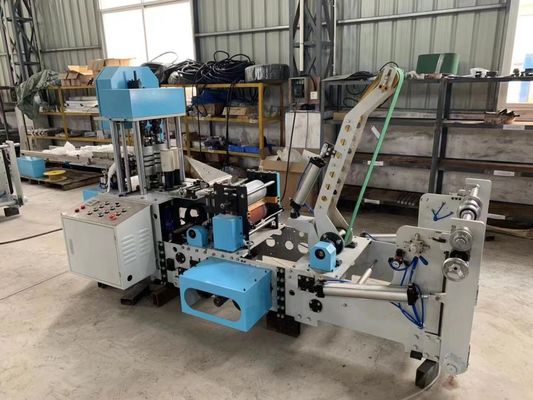

JH-MCM200-400 Medium Speed High Quality Napkin Tissue Folding Machine
1/4 Folded Paper Medium Speed 200meter/min Napkin Machine Pneumatic Feeding Type
Features:
1. Frequency converter control
2. Automatic electrical counting
3. Pneumatic loading
4. Automatic stop while machine blocked
5.Speed : working speed is 200meter/min
| MODEL | 190 | 200 | 230 | 240 | 270 | 300 | 330 | 400 |
| Max.jumbo roll width(mm) | 190 | 200 | 230 | 240 | 270 | 300 | 330 | 400 |
| Folded size(mm) | 95*95 | 100*100 | 115*115 | 120*120 | 135*135 | 150*150 | 165*165 | 200*200 |
| Unfolded size(mm) | 190*190 | 200*200 | 230*230 | 240*240 | 270*270 | 300*300 | 330*330 | 400*400 |
| Max.jumbo roll diameter | 1200mm(other size should be ordered) | |||||||
| Jumbo roll core inner diameter | 76.2mm | |||||||
| Backstand | Fix type,pneumatic type(should be order) | |||||||
| Folding style | 1/4 folded | |||||||
| Color printing | 0-2 colors(should be ordered) | |||||||
| Embossing unit | Steel to rubber,steel to paper,steel to steel(should be ordered) | |||||||
| Counting | Electrical counter | |||||||
| Speed control | Frequency converter | |||||||
| Power | 2.1-4.1Kw,380V,50Hz | |||||||
| Machine weight | About 700-1500Kg | |||||||
