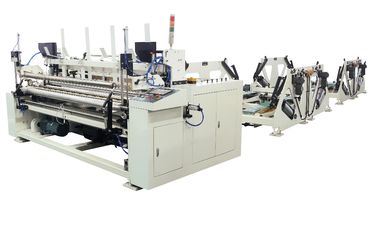

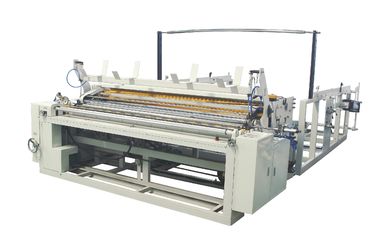

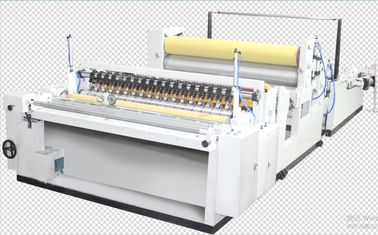

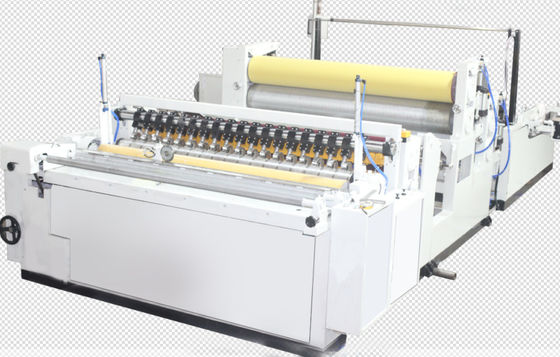

JRT / HRT Big Roll Toilet Tissue Rewinding Machine With SIMEN System

Large Image : JRT / HRT Big Roll Toilet Tissue Rewinding Machine With SIMEN System Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	ORGINAL
Model Number:	DMXP-200A

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiable
Packaging Details:	wooden case,20feet container can load 1set
Delivery Time:	30days
Supply Ability:	3SETS PER MONTH

Contact Now

Detailed Product Description

Working Speed:	200m/min	Separating Driving:	Separating Motor Driving
Color:	White And Blue	Good Quality:	SIEMENS PLC
Embossing:	Steel To Rubber Or Steel To Steel(For Option)	Glue Lamination:	Included
Power(w):	15KW	Raw Material:	Virgin Pulp
Warranty:	1 Year	Voltage:	220V50HZ/380V50HZ
Condition:	New	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Type:	Toilet Tissue,Kitchen Paoer Roll	Capacity:	2-3t/day
Highlight:	tissue paper manufacturing machine , tissue making equipment

JRT/HRT Big Roll Toilet Tissue Rewinding Machine using SIMEN System

DMXP-200A High speed toilet paper rewinding machine

MODLE	1575	1760	2200	2500	2800	2900	3000
Max.Jumbo roll width(mm)	1750	2000	2150	2400	2750	2850	2950
Finished product diameter(mm)	Ф60-150
Finished product core inner diameter(mm)	Ф32-50
Jumbo roll diameter(mm)	≤Ф1200(other size should be ordered)
Jumbo roll core inner diameter(mm)	Ф76.2(other size should be ordered)
Perforating size(mm)	110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed	220m/min
Parameter setting	SIEMENS touch screen
PLC control	SIEMENS PLC
backstand	1-4sets(should be ordered)
Air pressure	0.8Mpa(user supply)
Power	13.5-35Kw,380V,50Hz(base on the model)
Option
Embossing unit	Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
backstand	1-4 sets(should be ordered)
Transmission	Separating motor driving/timming belt transmission/chain and chain wheel transmission
Core or coreless unit	Should be ordered
Edge embossing unit	Air bag type(should be ordered)
Calendering unit	Steel to steel/steel to rubber(should be ordered)
