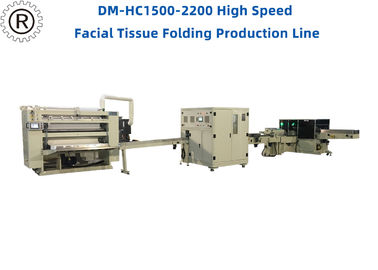

High Speed Economical Facial Tissue Folding Machine Production Line
DM-HC-200-6T Facial Tissue Folding Machine
Raw material:13-25GSM 1-2 ply (For Facial Tissue )
Width of jumbo roll:≤1260mm
Outer Dia. of jumbo roll:≤1200mm
Inner Dia. of jumbo roll core:76.2mm
Parameter setting:Touch Screen(SIEMENS)
Programmable controller: PLC (SIEMENS)
Braking:Pneumatic and electronic control
Machine speed:0-110m/min (controlled by frequency converter, INVT)
Production speed:100m/min
Slitting knives.:5 sets
Embossing unit: Steel To Steel Embossing (Cross flower embossing)
Folded size:170*85mm
Unfolded size: 170*170
2mm
Main transmission: timming belt
Mainframe structure:Wallboard type
Control voltage:DC24v
Main transmission power: 7.5kw, 380V, 50Hz (variable frequency speed regulating)
Paper unwind stand: 2 stands (pneumatic loader.separating motor driving)
Vacuum pump: 18-22Kw, 380V, 50Hz, root vacuum pump (Longtech)
Pressure of pneumatic system:8kg/cm2(supplied by user)
DM-HC-200-6T Facial Tissue Folding Machine
2. DH-150-I single line facial tissue log saw cutter
Size after cutting:L=90-230mm,W=90-100mm,H=80-135mm
Speed :120 cuts/min
Control System:PLC Programming Control, Servo Drive, Touch Screen Setting(Delta)
Feeding Way:Servo drive, Synchronous transmission belt positioning(Delta)
Cutting Way:360 degree rotating move continue cutting
Cutting Accuracy:tolerance ± 0.1mm
Cut tissue head and tail System:PLC Programming Control, Touch screen Setting(Delta)
Cutter sharpening system:Automatic grind, Touch screen Setting
Out-Diameter of cutter:610mm
Minimum Diameter of the cutter:450mm
Air pressure:0.5Mpa
Voltage:380V/50Hz
Power:6KW
Size of the machine:L=1900mm*W=1500mm*H=1700mm
Weight:about 1.5T
DH-150-I single line facial tissue log saw cutter
3. JZD-100C Fully Automatic Box Packing Machine(Including Nordson Hot Melt Adhesive Machine)
Technical Data :
| Specifications | JZD-100C |
| Paper Gsm Request | 250-400g/m² |
| Packing Size(L*W*H) | L100-240mm×W65mm-120mm×H30-90mm |
| Packing Speed | 80boxes/min |
| Hot Melt Adhesive Machine Power(Optional) | 2.32kw |
| Motor Power | 1.1kw |
| Total Power | 3.8kw |
| Power Type | Three-Phase Four-Wire |
| Machine Noise | ≦80dB |
| Gas | 0.5-0.8Mpa |
| Gas Consumption | 120-160L/min |
| Machine Size | L5500mm×W1600mm×H1800mm |
| ,Machine Weight | 1500kg |
