Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: DM-CJ -2T/4T/6T 190-400
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 2sets
Delivery Time: 60 days
Supply Ability: 5sets per month
Folding Type: |
1/4 Folded |
Speed: |
High Speed,1000pieces/min/lin |
Feeding Type: |
Pneumatic |
Cutting: |
Band Saw Blade |
Color Printing: |
0-2 Colors |
Power(w): |
About 3.5-7.5KW |
Warranty: |
1 Year |
After-sales Service Provided: |
Online Support |
Voltage: |
380V 50HZ |
Type: |
Folding Machine |
Folding Type: |
1/4 Folded |
Speed: |
High Speed,1000pieces/min/lin |
Feeding Type: |
Pneumatic |
Cutting: |
Band Saw Blade |
Color Printing: |
0-2 Colors |
Power(w): |
About 3.5-7.5KW |
Warranty: |
1 Year |
After-sales Service Provided: |
Online Support |
Voltage: |
380V 50HZ |
Type: |
Folding Machine |

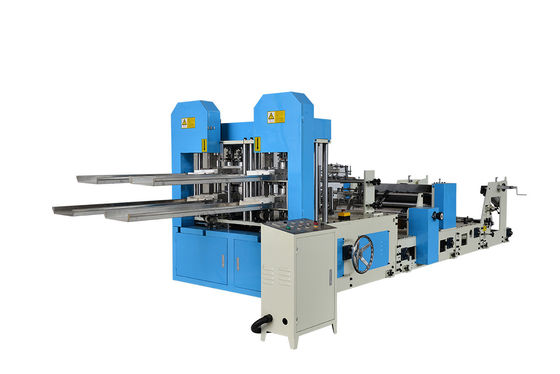

Double Line High Speed Napkin Machine Folder With Color Printing Units
DM-CJ-2T 190-400 Napkin Tissue Folding Machine
Features:
1. Frequency converter control
2. Automatic electrical counting
3. Pneumatic loading
4. Automatic stop while machine blocked
5. High Speed : 1000pieces/min/lin
| MODEL | 190 | 200 | 230 | 240 | 270 | 300 | 330 | 400 |
| Max.jumbo roll width(mm) | 190 | 200 | 230 | 240 | 270 | 300 | 330 | 400 |
| Folded size(mm) | 95*95 | 100*100 | 115*115 | 120*120 | 135*135 | 150*150 | 165*165 | 200*200 |
| Unfolded size(mm) | 190*190 | 200*200 | 230*230 | 240*240 | 270*270 | 300*300 | 330*330 | 400*400 |
| Max.jumbo roll diameter | 1200mm(other size should be ordered) | |||||||
| Jumbo roll core inner diameter | 76.2mm | |||||||
| Backstand | Fix type,pneumatic type(should be order) | |||||||
| Folding style | 1/4 folded | |||||||
| Color printing | 0-2 colors(should be ordered) | |||||||
| Embossing unit | Steel to rubber,steel to paper,steel to steel(should be ordered) | |||||||
| Counting | Electrical counter | |||||||
| Speed control | Frequency converter | |||||||
| Power | 2.1-4.1Kw,380V,50Hz | |||||||
| Machine weight | About 700-1500Kg | |||||||
