Kitchen Towel Toilet Paper Production Line Glue Laminated System

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: DMFJ-2600//3000A

Payment & Shipping Terms

Minimum Order Quantity: 1SEST

Price: Negotiable

Packaging Details: wooden pallet,2*40feet container can load 1 set

Delivery Time: 90 working days after receipt deposit

Supply Ability: 1set per month

Get Best Price
Highlight:

220m/min Toilet Paper Production Line

,

5T Toilet Paper Production Line

Speed:
220meter/min
Capacity:
1-5tons
Voltage:
380V,50Hz
PLC:
SIMEN
Warranty:
1 Year
Speed:
220meter/min
Capacity:
1-5tons
Voltage:
380V,50Hz
PLC:
SIMEN
Warranty:
1 Year

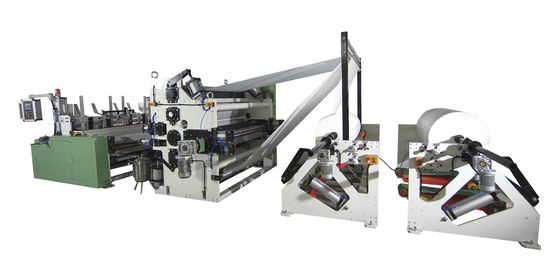

Kitchen Towel Toilet Paper Production Line Glue Laminated System

JRT AND Toilet Two Used Machine 2600mm Kitchen Towel Fully Automatic Production Line



Glue Lamination System Kitchen Towel Toilet Tissue Rewinding Machine High Speed 220meter/min





This is our video link :







DMFJ-2600(3000) Fully Automatic Productino Line



Features:



1. High speed:220m/min

2. Can do toilet .JRT in one machine , the glue lamination systme is for optional

4. MITSUBISHI PLC control makes work steadily

5. MITSUBISHI touch screen setting easy to change parameters

7. Separating motor driving

8. MITSUBISHI servo motor driving discharge rolls

9. Accumulator device

10. 2lanes high speed log saw cutter





MODLE 2600 3000
Max.Jumbo roll width(mm) 2550 2950
Capacity 5 tons/day 7 tons/day
Finished product diameter(mm) Ф70-300
Finished product core inner diameter(mm) Ф35-80
Jumbo roll diameter(mm) ≤Ф1500(other size should be ordered)
Jumbo roll core inner diameter(mm) Ф76.2(other size should be ordered)
Perforating size(mm) 110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed 22m/min
Parameter setting MITSUBISHI touch screen
PLC control MITSUBISHI PLC
backstand 1-6sets(should be ordered)
Air pressure 0.8Mpa(user supply)
Power 15/25Kw,380V,50Hz(base on the model)
Option
Embossing unit Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
Backstand 1-6 sets(should be ordered)
Jumbo roll loading Pneumatic loader/elevator(should be ordered)
Lamination unit Point to point or glue for nest(should be ordered)
Core or coreless unit Should be ordered
Core winding machine Should be ordered
Automatic core feeding device 300-600PCS storage(should be ordered)
Edge embossing unit Air bag type(should be ordered)
Calendering unit Steel to steel/steel to rubber(should be ordered)
Accumulator 110-210rolls type(should be ordered)
Log saw cutter 2 lanes log saw cutter(should be ordered)
