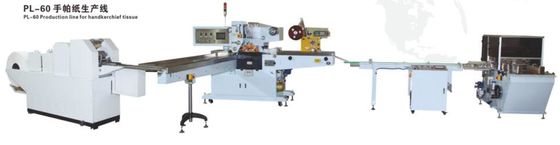

Automatic Pocket Tissue Single Line Production Line including single packing and bundle packing
SP-1L Automatic pocket tissue folding machine
| Model | SP-1L |
| Max.Jumbo roll width | 200-201mm |
| Max.jumbo roll diameter | 1500mm |
| Finished product size | (50-54)*(72/102)mm should be chosen |
| Embossing unit | Steel to rubber/steel to paper/steel to steel(option) |
| Vacuum pump | 7.5Kw,380V,50Hz |
| Counting | Automatic counting,6/8/10/12pcs,setting on touch screen |
| Parameter setting | Touch screen |
| Main power | 1.5Kw,380V,50Hz |
| Working speed | 600-650pcs/min |
| Air pressure | 0.8Mpa |
| Machine size | 2380*750*1570mm |

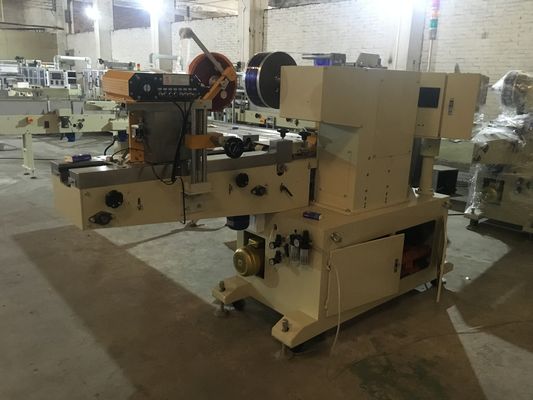

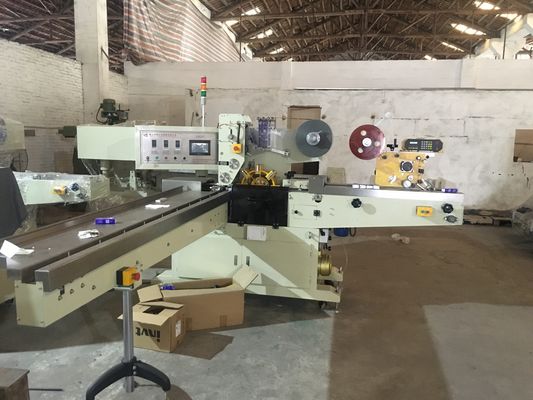

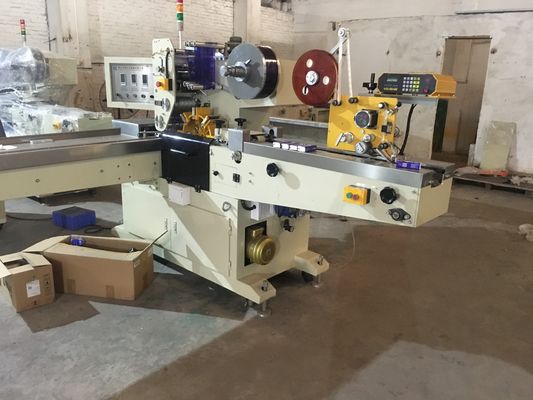

XB202 Automatic Pocket Tissue Packing Machine
| Model | XB202 |
| Packing size | (70-110)*(50-55)*(20-28)mm(L*W*H) |
| Working speed | 60-105bags/min |
| Machine power | 4.68Kw,380V,50Hz |
| Air pressure | 0.8Mpa |
| Packing film material | CPP,PE,OPP |
| PLC control | SIEMENS |
| Frequency converter | MITSUBISHI |
| Parameter setting | Touch screen(Weinview) |
| Machine size | 2840*2650*1720mm(L*W*H) |
| Machine weight | About 1500Kg |
TB380A Automatic Bundle Wrapping Machine
| Model | TB380A |
| Packing size | (150-300)*(70-150)*(42-84)mm(L*W*H) |
| Working speed | 10-15bags/min |
| Power | 3.5Kw,380V,50Hz |
| Air pressure | 0.8Mpa |
| Parameter setting | Touch screen(Weinview) |
| PLC control | SIEMENS |
| Packing film material | CPP,PE,OPP |
| Machine size | 2500*3200*1550mm(L*W*H) |
| Machine weight | About 1200Kg |
