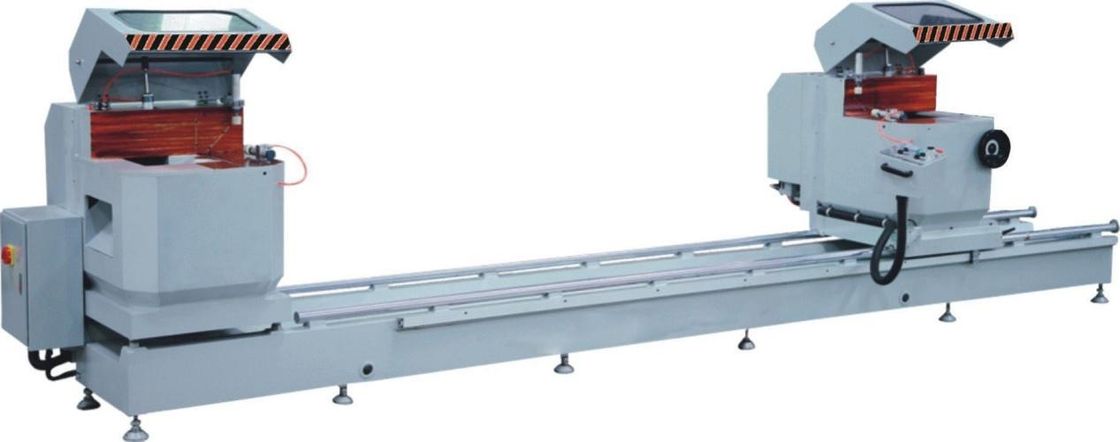

Heavy Duty Double Unit Aluminium Window Cutting Machine
1SET
MOQ
Negotiable
Price
Heavy Duty Double Unit Aluminium Window Cutting Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: A-383B
High Light:

250L/min Aluminium Window Cutting Machine

,

4500mm Aluminium Window Cutting Machine

Payment & Shipping Terms
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 90 days
Supply Ability: 5SETS PER MONTH
Specifications
Cutting Length: 430~4500mm
Main Motor Power: 3.0kw×2sets
Main Motor Running Speed: 2840r/min
Warranty: 12months
Product Description

A-383B Heavy duty double cutting unit aluminum cutting machine



Machine features:



1. used for aluminum alloy windows and doors cutting

2. 2 cutting units can work at the same time or 1 unit works.

3. the saw blade can set the cutting angle from 45°~90°;and choose the HMI.



Machine parameters:
1.cutting length 430~4500mm
2.cutting (width×height) 150×120mm(45°)
200×100mm(45°)
3.main motor power 3.0kw×2sets
4.main motor running speed 2840r/min
5.saw blade size Φ550×Φ30×120T
6.saw blade turning angle 90°~45°
7.saw blade feeding speed 0~3m/min
8.saw blade return speed 2~3m/min
9.working air pressure .0.6~0.8Mpa
10.machine voltage 380V
11.machine dimension(L×W×H) 5750×1100×l400mm
12.machine weight 1500kg
13.air consumption 250L/min
