Uniaxial Copy Milling 1000r/min Aluminium Window Cutting Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: A-393C
High Light:

1000r/min Aluminium Window Cutting Machine


170mm Aluminium Window Cutting Machine


Uniaxial Copy Milling Machine

Payment & Shipping Terms
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 90 days
Supply Ability: 5SETS PER MONTH
Warranty: 12months
Working Bench Size: 650 * 180mm
Milling Blade Running Speed: 1000r/min
Motor Power: 1.5kw
Product Description

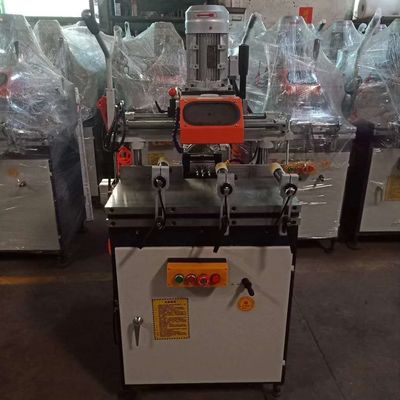

A-393C Uniaxial Copy Milling Machine


Machine Features:

It is used for the aluminum hold milling. Use the different size of hole mould copy milling 1:1 onto the products. Or use the limited block to mill the hole.


Machine parameters
1. Working bench size(L×W) 650×180mm
2. Max. right & left moving distance of mill blade holder 255mm
3. Max. front & back moving distance of mill blade holder 110mm
4. Max. right & left milling 224mm
5. Max. front & back milling 100mm
6. Max. up and down moving distance of mill blade holder 170mm
7. Milling blade diameter Max. Φ8mm min. Φ5mm
8. Milling blade running speed 1000r/min
9. Motor power 1.5kw
10. Motor running speed 2830r/min
11. Air press of pressing cylinder 0.6~0.8MPa
12. Machine dimension(L×W×H) 770(including material frame 2250)×720×1500mm
