Home > products > Facial Tissue Production Line > N Folded Hand Towel Tissue Paper Production Line With Glue Lamination Unit

N Folded Hand Towel Tissue Paper Production Line With Glue Lamination Unit

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: HT210/215/225

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiable

Packaging Details: wooden pallet,20 feet container can load 1set

Delivery Time: 60 days

Supply Ability: 3 sets per month

Get Best Price
Highlight:

N Folded Tissue Paper Production Line

,

Hand Towel Tissue Paper Production Line

Folding Type:
N Folded
Embossing:
Steel To Steel
Speed:
800-1000pcs/min/lane
Voltage:
380V,50Hz
Vacuum Pump:
Root Vacuum Pump
Backstand:
1-2sets
Folding Type:
N Folded
Embossing:
Steel To Steel
Speed:
800-1000pcs/min/lane
Voltage:
380V,50Hz
Vacuum Pump:
Root Vacuum Pump
Backstand:
1-2sets

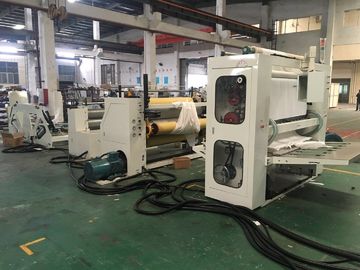

N Folded Hand Towel Tissue Paper Production Line With Glue Lamination Unit

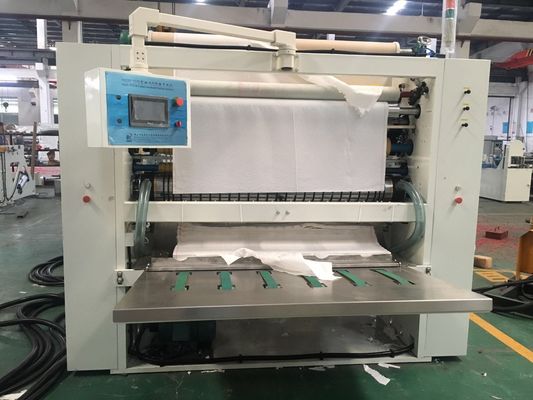

N Folded Hand Towel Tissue Paper Machine with glue lamination unit

HT210/215/225 N Folded Hand Towel Folding Machine

Features:

  • High speed:800-1000 sheet/min
  • Multifunction:hand towel and kitchen towel can be made
  • Control system:SIEMENS PLC

Parameters:

MODEL 3T 4T 5T 6T
Max. Width of jumbo roll 630mm 840mm 1050mm 1260mm
Slitting knife 3sets in back and front 4sets in back and front 5sets in back and front 6sets in back and front
Vacuum pump 11Kw 11Kw 15kw 18.5kw
Main driving motor powe 4kw 4kw 5.5kw 5.5kw
Machine size 6×1.8×1.9m 6×2×1.9m 6×2.3×1.9m 6×2.5×1.9m
Machine weight 3500kg 4500kg 5500kg 6500kg
Machine speed 500-1000 sheet/min/lane
Max.diameter of jumbo roll Ф1200mm(other sizes can be ordered)
Inner diameter of jumbo roll Ф76.2mm(other sizes can be ordered)
Bankstand 2-6 jumbo rolls (should be ordered)
Embossing unit Steel to rubber,steel to paper,steel to steel(should be ordered)
Lamination unit Should be option
Edge embossing unit Air bag type,bearing pattern(should be ordered)
Air pressure 0.8Mpa(user supplied)
