Product Details
Place of Origin: China
Brand Name: Orginal
Model Number: DM-FJ-KT220-3000
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: wooden packing
Delivery Time: 1month-2month
Payment Terms: T/T
Width Of Jumbo Roll: |
1750mm-2950mm |
Speed: |
180-220meter/min |
Embossing Unit: |
Including Or Not |
Glue Laminated System: |
Including Or Not |
Power: |
Depends On Machine Size |
Warranty: |
One Year |
Width Of Jumbo Roll: |
1750mm-2950mm |
Speed: |
180-220meter/min |
Embossing Unit: |
Including Or Not |
Glue Laminated System: |
Including Or Not |
Power: |
Depends On Machine Size |
Warranty: |
One Year |

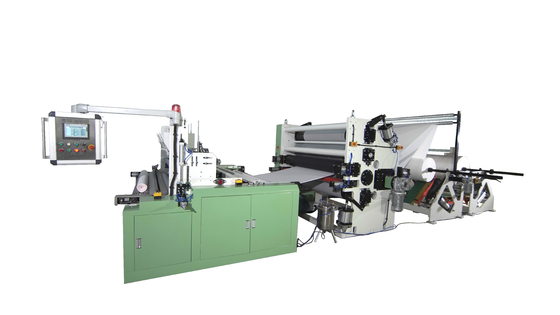

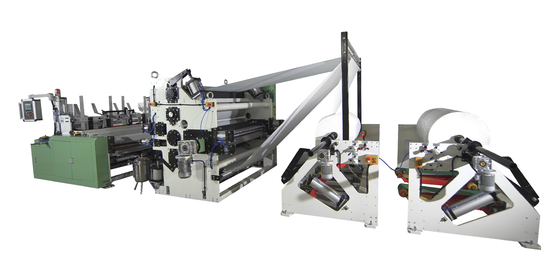

Toilet Tissue Rewinding Machine with Glue Laminated System Unit Production Line
Raw material:13-25gsm (For Toilet)
Width of jumbo roll: 1750mm
Outer Dia. of jumbo roll: 1500mm
Inner Dia. of jumbo roll core:76.2mm
Parameter setting:Touch screen(SIEMENS)
Programmable controller: SIEMENS PLC (Auto-prompt adding core; auto-put core; auto-control the finished products’ diameter; auto-trim, spray glue and seal,automatic roll pushing)
Braking:Pneumatic and electronic control
Machine speed:
Toilet Tissue: 0-250m/min
Production speed:Toilet: 220m/min(with embossing)
Finished products’ Dia.:70-300mm (Tightness can be adjustable)
Sheet of finished product control:Increase gradually till to reach the set sheets.
Perforating size:110mm
Perforator:4 pieces of anvil blades (pneumatic shifting)
Core Dia. :35-80mm
Automatic loose core:Cored products can be produced
Main transmission: All is independent motors driving
Mainframe structure:Wallboard type

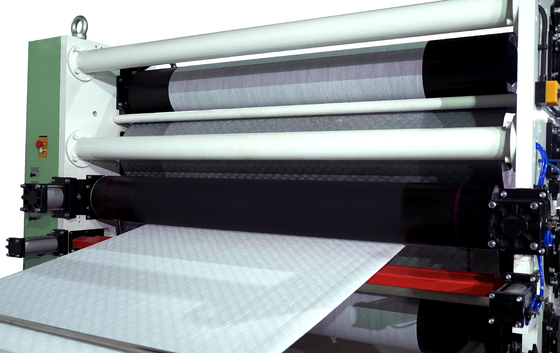

Embossing unit for toilet roll: One Set Steel to Rubber Embossing Unit(pattern designed by customer or supplier)
Control voltage:DC24v
Main machine power: 3KW , 380V,50Hz
Backstand:2 stands (pneumatic loader, separating motor driving, left/right adjust: motor drives)
Pressure of pneumatic system:0.8Mpa(user supplied)
