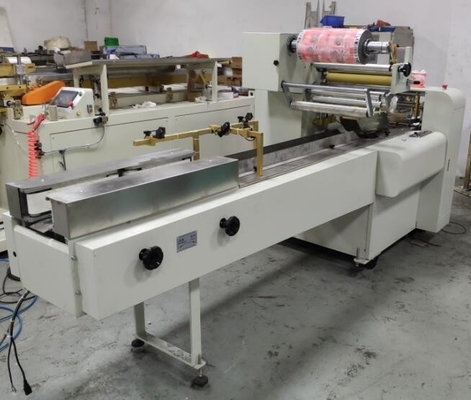

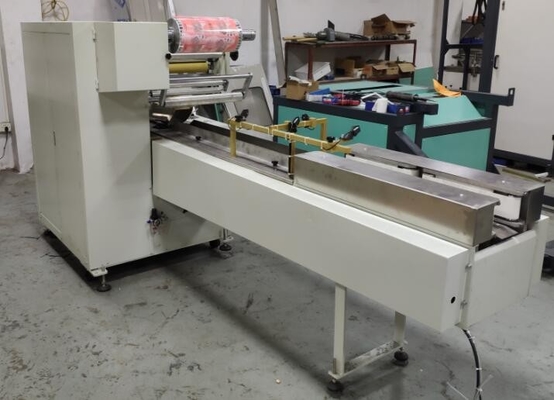

PLC Touch screen Automatic Film Packing Machine Of Single Toilet Roll
PLC  Touch screen Automatic Film Packing Machine Of Single Toilet Roll
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Orginal
Model Number: DM-DJ-200A
High Light:

PLC Automatic Film Packing Machine

,

Toilet Roll Automatic Film Packing Machine

Payment & Shipping Terms
Specifications
Size: Standard Size
Speed: 45-100 Rolls/min
Power: 2.1KW
Air Pressure: 0.8Mpa
Guarantee: Including After Sales Services
Product Description

Automatic Film Packing Machine of single toilet roll



Size of finished product: L=80-200mm, Dia.=80-125mm,

Machine speed: 45-120rolls/min

Max. Width of packing film:480mm

Total power: 4.8Kw,single phase 220V,50Hz

Cutting servo motor:1Kw,

Feeding servo motor:0.75Kw

Tidy servo motor: 0.4Kw*2sets

Packing material: double-sided heat sealing membrane such as CPP, PE, CPP

Sides sealing: Including

Programming control: PLC

Air pressure: 0.8Mpa (user supplied)

Parameter setting: Touch screen

Servo Motor: 1.5Kw, 380V, 50Hz

Machine size: 3.5*1.5*1.5m (L*W*H)

Machine weight: about 1000Kg

PLC  Touch screen Automatic Film Packing Machine Of Single Toilet Roll 0
