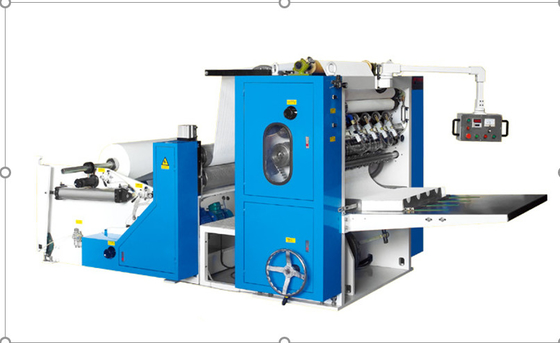

N Fold 42GSM 1 Ply Hand Towel Machine With Timing Belt
N Fold 42GSM 1 Ply Hand Towel Machine With Timing Belt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Orginal
High Light:

1 Ply Hand Towel Machine

,

N Fold Hand Towel Machine

Payment & Shipping Terms
Specifications
Folding Type: N Fold
Power: 11KW
Size: 3-7 Lines N Fold
Warranty: One Year
Voltage: 380V,50HZ
Product Description

N Fold Hand Towel Machine



DM-3L(205) N Fold Hand Towel Folder

Raw material:28-42GSM 1 ply hand towel tissue

Max.width of jumbo roll:690mm

Outer Dia. of jumbo roll:1100mm

Inner Dia. of jumbo roll core:76.2mm

Machine speed:1000sheet/lane/min (controlled by frequency converter)

Production speed:900sheet/lane/min( 200meters/min)

Slitting knives.:3 sets

Embossing unit: One Set Steel to Steel Embossing Unit

Folded size:701*210mm

Unfolded size: 2103mm*210mm

Main transmission: timing belt

Mainframe structure:Wallboard type

Control voltage:DC24v

Main transmission power: 3kw, 380V, 50Hz (variable frequency speed regulating)

Paper unwind stand: 1 unwinding unit (pneumatic loader)

Vacuum pump: 11Kw, 380V, 50Hz, root vacuum pump (Longtech)

Pressure of pneumatic system:8kg/cm2(supplied by client)



DM-3L(205) N Fold Hand Towel Folder
